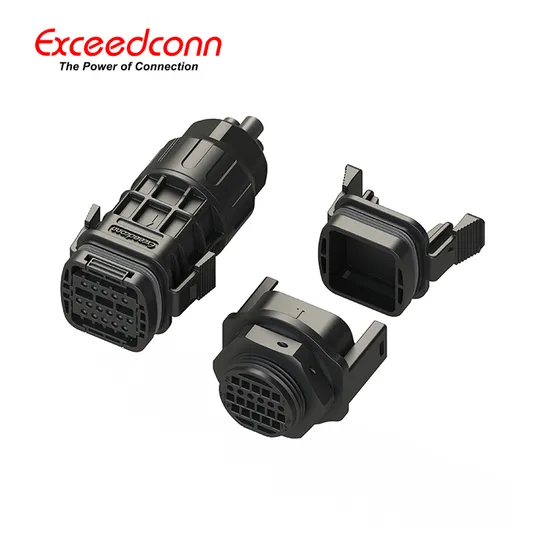

16 Pins Multicore Communication Cable End Push Pull Wire Female Connector

Product Description

Product Description
16 pins multicore communication cable end push pull wire connector

Electrical Performance
Rated Voltage	3000V AC
Rated Impulse Voltage	2000V
Rated Current	5A MAX
Contact Resistance	≤5mΩ
Insulation Resistance	≥500MΩ
Mechanical Capacity
Insertion Force	≤80N
Retention	≥100N
Mechanical Endurance	≥500
Cable Gauge	20-26 AWG
Lockline Screw Torque	5N.m~10N.m
Operational Environment
Ambient Temperature	-40ºC~+90ºC
Degree of Protection	IP67
Flammability Class(Insulator)	V-0
Material
Plastic	PA66+25%GF,PC+PBT
Housing Material	Engineering plastic
Conductor Material	Nickle plated copper alloy

Company Profile
Exceedconn is committed to provide lighting system connection solutions, products R&D, manufacturing and OEM service. The products are widely used in the fields of city lighting, landscape, solar energy and industrial control etc. Main customers are industry leading enterprises.With many years development, Exceedconn owns a professional and strong technical team. We can provide individualized connection solutions for different customer in different fields. Company has more than 50 patents in connection solutions till now.Adhering to the "rigorous, responsibility, cooperation" business philosophy, Exceedconn provides customer high quality products and service.Exceedconn---Your strong supports on connection solutions.
Certifications
Packaging & Shipping
FAQ
Q: Can you offer samples?
A: We can supply the free sample with freight collect.

Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

Q: What's your after-sales service?
A: We provide you with technical support and can help you to solve your customers' problem.

Q: Do you have a catalogue?
A: Yes, we have product catalogue.Please contact us online or send an Email for catalogue.
