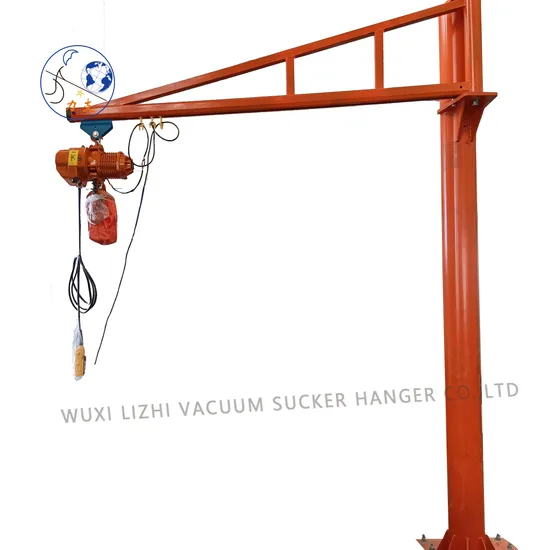

200kg Board Column Cantilever Crane Vacuum Lifting Sheet Metal Vacuum Lifting

Product Description

Product Description Suitable for steel plates of various characteristics with oil stains or rust of different sizes, the product adopts a manually designed handle: operating handle, simple and safe local galvanizing, and different lengths of main beams and crossbeams are configured according to different workpiece sizes. Basic modules Wuxi Lizhi produces electric gantry rail suction cranes, which run stably and are easy to operate. The equipment consists of a gantry frame, a running track, a ring chain electric hoist, and a vacuum suction crane. Performance parameters: The electric hoist of the ring chain hoist rises and falls by 6/8m/min, with a load of 500kg
The operating point motor can move forward and backward, left and right electrically
The cable slides smoothly without tangling
Vacuum suction lifting rated load 500kg
Hand slide valve controls suction and discharge, wireless remote control controls walking

Model	load capacity	Control mode	Improvement methods	Rotation angle	height	Scope of work	Increase speed
LZ-0.2T/H3.15/R3M	200kg	Handle / remote control	Handle / remote control	270°	1.1-3m	3-5m	6m/min
LZ-0.4T/H3.15/R3M	400kg	Handle / remote control	Handle / remote control	270°	1.1-3m	3-5m	6m/min
LZ-0.5T/H3.15/R3M	500kg	Handle / remote control	Handle / remote control	270°	1.1-3m	3-5m	6m/min
LZ-0.8T/H3.15/R3M	800kg	Handle / remote control	Handle / remote control	270°	1.1-3m	3-5m	6m/min
LZ-1T/H3.15/R3M	1000kg	Handle / remote control	Handle / remote control	270°	1.1-3m	3-5m	6m/min

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q1.Are you a factory or trading company? We are a manufacturer specializing in the production of vacuum suction cups, vacuum suction cranes, column type cantilever cranes, robotic arms, palletizing robots, vacuum fixtures, vacuum suction cup end pickers, vacuum component system equipment, vacuum handling system integration equipment, etc
Q2.What size of board can the charging suction crane lift? Wuxi Lizhi Vacuum Suction Cup Lifting Appliance Co., Ltd. produces various types of suction cranes, including 0.5t-0.8t-1t-1.5t-2t-3t-5t-10t-20t.
Q3.Can we customize according to the customer's product?
Yes,we have many types and specifications. If there is no suitable one, we can customize according to your product.
Q4.What fields can vacuum suction cranes be used in?
We cover a wide range of products including home appliances, 3C electronics, building materials, food packaging, medical equipment, automotive parts, metallurgy, daily chemical products, rubber and plastic, sanitary ware, textiles, new energy, warehousing and logistics, and many other fields.
Q5.Does the equipment need to be assembled?
No, it's not necessary.The equipment has been debugged before leaving the factory, and you can lift any plate directly with the crane hook.
Q6.Is the device easy to operate and convenient?
The rechargeable suction crane produced by Wuxi Lizhi is a good product in the sheet metal industry, which greatly improves work efficiency and safety, and is very convenient to use.
Q7.How can I get the price? We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you
quote.
Q8.Which is better, an unpowered suction crane or a rechargeable suction crane
The unpowered suction crane produced by Wuxi Lizhi is suitable for whole board handling and loading/unloading, while the rechargeable suction crane can not only complete the suction and lifting of whole boards, but also parts, making it more suitable for the sheet metal industry.
Q9.Does an unpowered suction crane require a vacuum pump?
Wuxi Lizhi vacuum suction crane does not require a vacuum pump, it relies on the internal circulation chamber to generate vacuum
Q10.What are the safety devices of the suction crane?
The suction crane is equipped with safety measures such as pressure detection, pressure alarm, and suction and discharge load control.
