High Speed Powder Mixer Machine for PVC Additive PVC Mixer Unit Horizontal Plastic Mixing Machine Pipe Line Blender Hot & Cold Mixer Equipment
| US$9,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
300L-3000L
Structure
Horizontal ,Vertical
Warranty
1 Year
Extrusion Head Design Service
Provided
Temperature Control Meter
Omron or Rkc
Inverter
ABB
Voltage
380V or Customized
Application
for Plastic Powder Mixing
Lead Time
45working Days
Transport Package
Seaworthy Package
Specification
300L-3000L
Origin
China
HS Code
84798200
Production Capacity
5000sets/Year
Product Description
Keep on going for new technology on plastic extrusion is our target. Welcome to contact us!A. Vertical Mixer Unit
It is used in batching, mixing, drying, coloring and other industrial process. It is the most ideal equipment for producing plastic profile, plastic pipes.
Hot mixing has the self-friction, electric heating function. Pot cover adopts two-layer sealing design. Cold mixing also adopts arch pot cover, which can avoid deforming. It has features of fine construction and good performance. Mixing paddle has passed through the static and dynamic balance test.
| Model | Total capacity (L)---heat/cool | Effective capacity (L)---heat/cool | Van rotating speed(r/min) | Motor&Heating power(KW) | Gass consumption m3(min) | Heating method | Discharging method | Mixing time m/p. pot | |
| Heat | Cool | ||||||||
| SRL-Z300/600 | 300/600 | 200/360 | 950/130 | 55/11 | 3.8t/h | Electric heating/ Self-friction | Manual/Pneumatic | 8~10min/pot | 6~8min/pot |
| SRL-Z500/1000A | 500/1000 | 375/650 | 860/60 | 75/15 | 5.8t/h | Pneumatic | 8~10min/pot | 6~8min/pot | |

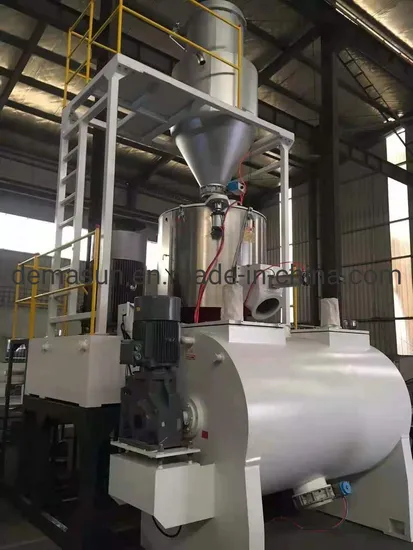

B. Horizontal Mixer Unit
It is used in batching, mixing, drying, coloring and other industrial process. It is the most ideal equipment for producing plastic profile, plastic pipes.
Pot cover adopts two-layer sealing design. The opening of hot mixing pot cover adopts pneumatic, and the one of cold mixing pot cover is pneumatic or manual type. It has features of fine construction and good performance. Electric control adopts imported famous brand meters and control elements to realize automatic control. Equipped with pulse dust-cleaning recovery device. Mixing paddle has passed through the static and dynamic balance test. Simple and easy feeding system is an optional choice for customer.
| Model | Total capacity (L)---heat/cool | Effective capacity (L)---heat/cool | Main shaft speed (rpm) | Motor power (KW) | Heating cooling method | Discharging method | Water consumption (T/h) |
| SRL-W 800/2000 | 800/2000 | 520/1200 | 750/80 | 110/22 | Self-friction/water cooling | Pneumatic | 8 |
| SRL-W 800/2500 | 800/2500 | 520/1500 | 750/80 | 110/30 | Pneumatic | 9 | |
| SRL-W 1000/3000 | 1000/3000 | 1650/1950 | 600/65 | 160/37 | Pneumatic | 11 |
