China Fangda Manufacturing High Performance, High Yield Large Floor Surface Grinding Machine

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, SiC wafer, ceramics, glass, industrial sapphire, plastics, and any other composites.
Products Show

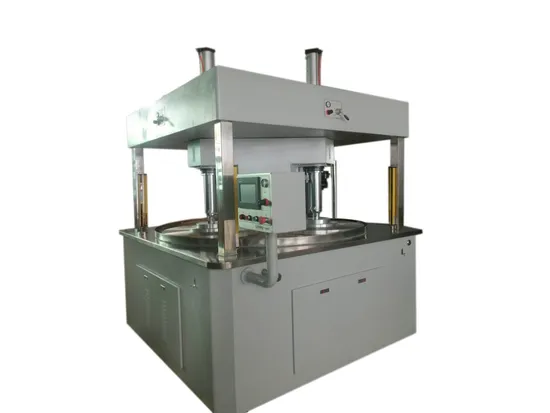

High precision grinding machine (with water cooled shaving machine) equipment principle:
1. The grinding machine is a precision grinding equipment, the grinding product is placed on the grinding disc, the grinding disc rotates against the clock, the workpiece rotates itself, the cylinder pressure is applied to the workpiece, and the workpiece and the grinding disc are relative rotating friction to achieve the purpose of grinding.
2. The disc repairing machine adopts oil-pressure suspended guide rail and diamond shaving knife to precisely trim the grinding disc, so that the grinding disc can obtain precise flatness.
High precision grinding machine (with water cooled shaving machine) Equipment features:
1. The flatness of the grinding disc can reach ±0.01mm; The flatness of the workpiece with a diameter of 50mm can reach 1/4 wavelength.
2. The grinding machine can be pressurized by cylinder, and the pressure is adjustable;
3. The series of grinding machine adopts PLC program control, touch screen operation panel, grinding disk rotation and timing and grinding time can be directly input on the touch screen, the speed is adjustable, easy to operate
4. The grinding disc adopts water-cooled circulation system, the temperature can be controlled at low temperature, the error is ±1ºC to solve the problem of heat generated in the grinding process to deform the workpiece.
Pressurized gas with gas protection lock function, safety is guaranteed.
5. The equipment is equipped with three stations (including three sets of weight pressing and self-locking systems), which can simultaneously carry out polishing and grinding processing of three groups of products.
6. Grinding liquid (or coolant) circulation filling system;
SAMPLE DEMONSTRATION (SINGLE PLATE)
About the company
Ponda is a high-tech enterprise specializing in all kinds of high precision grinding equipment, polishing equipment and itssupporting products and consumable materials
We have a production workshop and testing equipment, assembly workers and mechanical design engineers45 people
Patent
About packing
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.
