Jwell Jwz-Bm160/230 Blow Molding Machine for 100-220L Plastic Buckets and Bottles

Product Description

Product Parameters

Model	Unit	BM230
Max product volume	L	230
Dry cycle	Pc/h	280
Die head structure	type	Accumulating type
Main screw diameter	mm	120
Max plasticizing capacity(PE)	kg/h	350
Driving motor	KW	132
Oil pump motor power(Servo)	KW	37
Clamping force	KN	900
Space between platen	mm	800-1800
Platen size W*H	mm	1320*1600
Heating power of die head	KW	36
Machine dimension L*W*H	m	8.2*3.5*5.5
Machine weight	T	36
Total power	Kw	230

Detailed Photos

Product Description
Product Description:

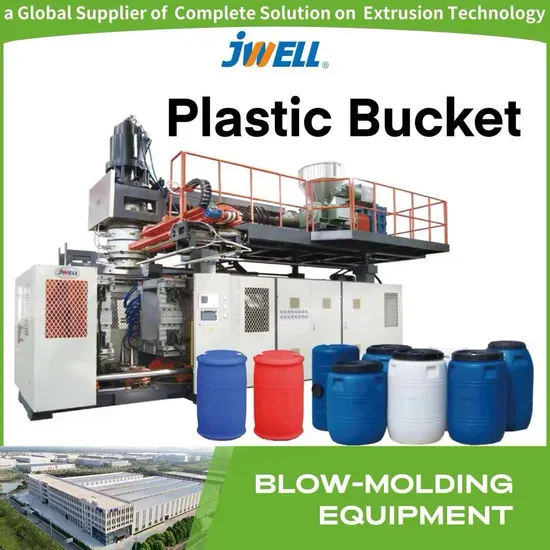

The JWZ-BM160/230 Blow Molding Machine is a cutting-edge solution for producing 100-220L plastic buckets, bottles, and industrial drums. This machine delivers exceptional performance, making it ideal for manufacturing durable and versatile containers used in various industries.
Key Features:
Versatile Production Capabilities: Specially designed for creating 100-220L plastic buckets, bottles, open-top drums, and double 'L' ring drums for industrial and commercial use. High Output Extrusion System: Ensures efficient production with uniform material distribution and quality. Accumulative Die Head Technology: Provides precise control over wall thickness, ensuring robust and durable bucket and bottle designs. Optional Hydraulic Servo Control System: Improves operational efficiency, accuracy, and reduces energy consumption. Optional Double-Layer Extrusion System: Enables the production of double-layer plastic buckets and bottles with enhanced strength and chemical resistance. Applications:
Plastic buckets for chemical storage, paints, and industrial materials Plastic bottles for liquids, lubricants, and hazardous substances Drums for transportation and industrial packaging Widely used in industries like logistics, construction, and agriculture With its versatile production capabilities and customizable options, the JWZ-BM160/230 Blow Molding Machine is the ideal choice for businesses focused on producing high-quality plastic buckets, bottles, and industrial drums efficiently.
