Customized Compressed Air Tank Aluminum Steel Tanks Air Tank

Product Description

Customized Compressed Air Tank Aluminum Steel Tanks Air Tank
Product Description

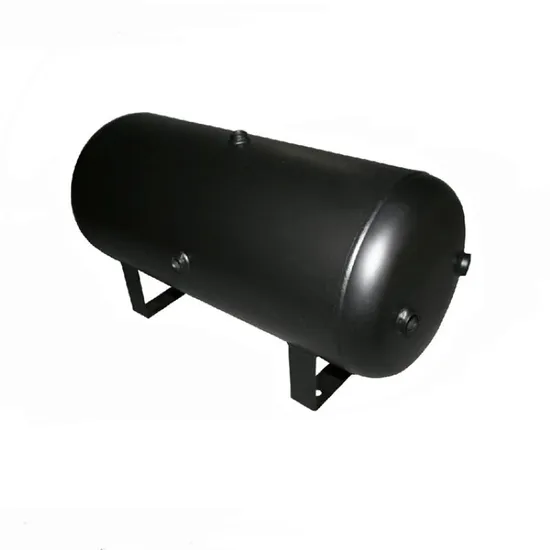

ALUMINUM / STEEL AIR TANK
The car air tank, also known as the air compressor tank, is a crucial component of a vehicle's air brake system. Its primary function is to store compressed air, which is used to power the air brakes when needed. Typically made of steel or aluminum, the tank is designed to withstand high pressures and is usually located in the rear of the vehicle. Regular maintenance and inspections are essential to ensure the tank remains in good working condition and to prevent potential safety hazards. The tank's capacity and design may vary depending on the vehicle's make and model.
1.It is widely applied for vehicle refitting. Models of vehicles are not limited
2. aluminum air tanks are lighter than steel and stainless steel tanks
3. A fresher aesthetic, stronger resistance in rust
4 . Seamless better sealing
5 . The air tanks comply with SAE J10 Standard
6.Rated working pressure : 200psi , burst pressure is more than 1000psi
7. Finish, anodized, polished, powder coating
Product Parameters

Item No.	Material	Tank Dia. (mm)	Length H (mm)	Volume (It)	Port Size	Port Q'ty	Max.Pressure	Max.Working Temperature	Surface Treatment
LH080200	Aluminum/Steel	88	200	1	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH100190	Aluminum/Steel	100	190	1.4	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130100	Aluminum/Steel	130	100	1	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130130	Aluminum/Steel	130	130	1.5	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH130175	Aluminum/Steel	130	175	2	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH150350	Aluminum/Steel	150	350	6	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH160220	Aluminum/Steel	160	220	4.5	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH190330	Aluminum/Steel	190	330	9	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 ºC	Painted/Polishing/Anodizing
LH190420	Aluminum/Steel	190	420	12	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH220400	Aluminum/Steel	220	540	20	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60ºC	Painted/Polishing/Anodizing
LH245400	Aluminum/Steel	245	400	19	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
LH245540	Aluminum/Steel	245	540	24	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PSI	-10-60 C	Painted/Polishing/Anodizing
LH330590	Aluminum/Steel	330	590	50	1/4"NPT,3/8"NPT,1/2"NPT	As your request	200 PS	-10-60 ºC	Painted/Polishing/Anodizing
Note: We Accept Customer Size Customization

Detailed Photos
Heavy Duty Construction:
This aluminum air tank is designed for heavy-duty use, ensuring it can withstand extreme conditions and support a maximum payload of over 30,000 kg, making it ideal for heavy truck and trailer applications.
Customizable Size Options:
Available in various sizes, including 5L, 15L, 20L, and 30L, this air tank can be customized to meet specific user requirements, including a diameter of 104mm to 320mm and a length of 280mm / 246mm.
Durable Material:
Made from high-quality aluminum, this air tank is resistant to corrosion and can withstand harsh environments, ensuring a long lifespan and reliability.
100% Quality Guarantee:
This product comes with a 100% quality guarantee, providing users with peace of mind and confidence in their purchase, especially for users like you who require a reliable air tank for their trailer truck.
Fast Delivery:
The lead time for this product is 3-10 days, ensuring timely delivery to meet user needs, whether it is a renovation or upgrade.
FAQ
Q1. How is the packaging of the air storage tank?
A: Generally, we pack the goods in neutral wooden boxes. If you have a legally registered patent, we can pack the goods in your branded boxes after receiving your authorization letters.
Q2. What are your payment terms?
A: 100% T/T, L/C, Paypal, and Western Union before delivery. We will show you photos of the products and packaging before you pay the balance.
Q3. What are your delivery terms for air storage tanks?
A: EXW, FOB, CFR, CIF, and DDU are all available.
Q4. What is the delivery time for this aluminum air storage tank?
A: Generally, it will take 7 to 15 working days after receiving your advance payment. The specific delivery time depends on your order items and quantity.
Q5. Can you produce air storage tanks according to the samples?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q6. What is your sample policy?
A: We can provide air dryer samples if we have ready parts in stock, but customers have to pay the sample fee and courier fee.
Q7. Do you test all air tanks before delivery?
A: Yes, we do 100% tests before delivery, no worry about quality.
Q8: How do you make our business maintain a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our customers benefit;
2. We respect every customer and regard them as our friends, we sincerely do business and make friends with them, no matter where they come from.
