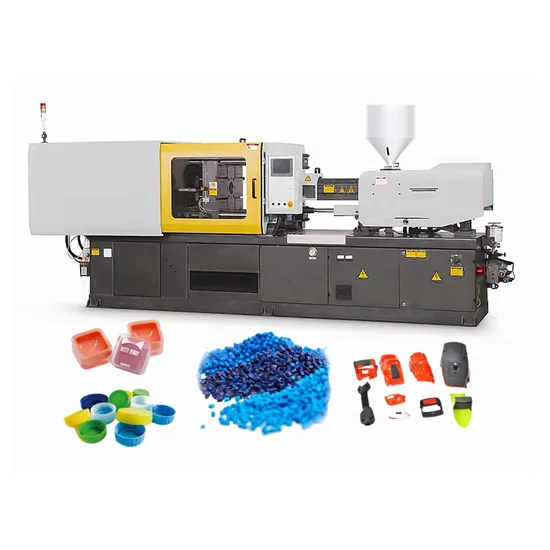

China Automatic Plastic Making Plastic Injection Production Machine for Sale

Product Description

Product Description

1	LCD computer control with colorful screen
2	Pressure-flow proportional valve.
3	Hard chrome plated high tensile strength steel tie bars
4	Generous space for fitting large moulds
5	Large opening stroke.
6	Two transducers to control Clamping and Injection
7	Four stages of injecting, independent velocity and pressure control.
8	Hydraulic mould height adjustment device.
9	Screw cold-start prevention device.
10	Melt decompression control.
11	Screw back pressure control
12	Multiple hydraulic ejections.
13	Differential area high speed clamping.
14	Centralized lubrication system.
15	Low pressure mould protection device
16	Mechanical safety interlock
17	Double electrical safety interlock
18	Oil return filter

injection blow molding machine
1.High position accuarcy:most suitable for machining parts such as dies,drilling or boring
jigs and fixtures



2.wider range of application:drilling, boring, medium-load milling, scribing,scaling and measuring all are ok
3.various sizes of table:three standard sizes and much more amounts of size just as your requirement
Specification

Screw diameter	mm	55	60
Screw L/D	--	22.9	21
Shot weight	gram	605	720
Injection capacity	cm3	665	791
Injection pressure	kg/cm2	2100	1760
Screw stroke	mm	280
Screw torque	N.m	2000
Heating power	kw	18.5
Clamping force	ton	240
Opening stroke	mm	530
Mould height	mm	200~570
Max daylight	mm	1100
Space between tie bars	mm	555×555
Ejector force/stroke	ton/mm	6.15/130
Oil pump motor	kw	22
Machine size	m	6.2×1.6×2.1
Machine weight	ton	8

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
Order Evaluation
Exhibition
Customer Photos
Certifications
FAQ
1. How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
