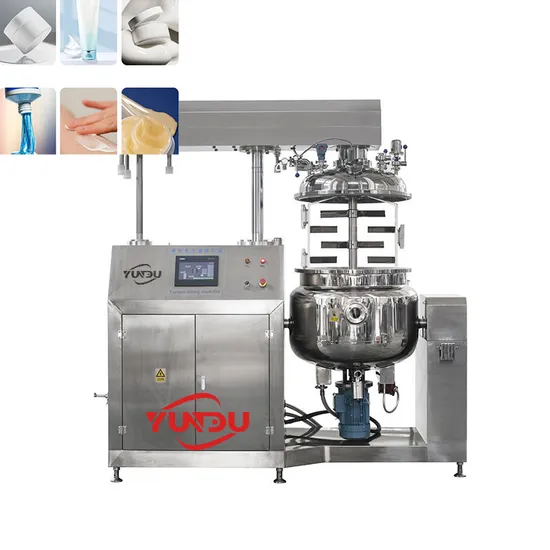

Liftable Emulsification Mixing Machine

Product Description

product introduction

Item	Parameter
Emulsifying Main Pot
Volume	250 L
Working Volume	200 L
Allowable Working Pressure	Inside Pot: -0.1 MPa; Jacket: 0.1 MPa
Allowable Working Temperature	≤130ºC
Pre-treatment Pot
Volume	Oil Pot: 100 L; Water Pot: 120 L
Allowable Working Pressure	Jacket: 0.1 MPa
Allowable Working Temperature	≤130ºC
Mixer Type	Turbine
Mixer Power	1.1 KW
Slow Frame Agitator
Speed	0-60 R/min (variable frequency control)
Power	1.5 KW
High-Speed Homogenizer
Speed	0-3500 R/min (variable frequency control)
Power	4 KW
Vacuum Degree Inside Pot	-0.09 MPa
Vacuum Pump
Model	2BV2070
Power	2.35 KW
Type	Water ring

CBZRJ vacuum emulsifying machine is a new type of vacuum emulsifying equipment which integrates the functions of homogenization, emulsifying, mixing, dispersing, pumping, heating and cooling. Mainly applicable to cosmetics, food, chemical, pharmaceutical and other industries. For paste, cream (or colloidal) materials with viscosity below 50,000cp, homogenization, emulsification and stirring are carried out under vacuum. Make it obtain high quality products, the equipment design, manufacturing fully comply with GMP national standards.The equipment is composed of 1.emulsion stirring pot, 2. oil and water pot, 3. vacuum system, 4. heating and cooling system, 5. hydraulic lifting system, 6. dumping device, 7. discharge system, 8. feeding system, 9. electrical control system, 10. temperature control system, 11 working platform, etc.
The equipment has heating and cooling devices.
All parts of the equipment in contact with the material are made of high-quality stainless steel and non-toxic and harmless materials to ensure the health quality of the products. All pressure vessels have issued a qualified design and manufacturing unit license, in strict accordance with the relevant national regulations on the design and manufacturing of pressure vessels.Main product
Buyer feedback
Company Profile
Based in Guangzhou, China's advanced manufacturing base, Yundu is an integrated enterprise specializing in developing, manufacturing, and selling liquid filling machinery. Thanks to our commitment to innovation in fluid packaging machinery, Yundu now boasts a series of mature machines in 5 main categories based on filling type, including BFS, bottle liquid filling, squeeze tube, Cup, and sachet. All our machines have been granted CE certification and meet GMP standards, which have helped them gain the trust of customers at home and abroad and find wide application in more than 50 countries and regions. To provide ongoing after-sales servicing, we have established service centers in countries including Thailand, Indonesia, Turkey, Korea, and Japan, and we seek to expand into more countries in the future.
Our factory
Our ServicesOur certificate
exhibition
1.What is Yundu's background?
Yundu was founded in Guangzhou, China, in 2001. We manufacture filling and food packaging machinery and provide sustainable packaging solutions for the pharmaceutical, food, and chemical industries.
2.In which countries do you have dealers?
We have distributors in Vietnam, Thailand, Philippines, Indonesia, Turkey and some European countries. Please let us know your location and we will have a distributor contact you.
3.Are you a reseller or manufacturer?
We are a manufacturer and also engage in international trade. We have built a distribution system from production to sales to logistics.
4.How do I choose the right filling machine for my business?
To help us suggest the best liquid filling machine for you, please provide us with the following specifications:
1.Product packaging (bottle or pouch)
2.Filling material (fluid, liquid, powder or granule)
3.Filling capacity (ml-L)4.Industry (food, pharmaceutical, chemical)
5.Filling speed (please provide daily production capacity data)
6.Budget
Once we have reviewed your specifications, we will quickly recommend the filling machine series that will meet your business requirements.
5.Do you provide customized filling machinery services?
Yes, first we will collect your product packaging, capacity, filling liquid, and applied industry information. Then, our technical team will design the filling head and product pack molds and suggest the motor that fits within your budget.
6.How many types of liquid filling machines do you offer?
We offer a diverse range of over 20 liquid filling machines, designed to meet various industry needs. Our expertise also includes complete liquid filling line solutions.
7.What kinds of liquids can your machines fill?
Our machines are versatile and can handle liquids, fluids, pastes, oils, and more. If you have a specific product in mind, let us know, and we'll provide a tailored solution.
8.Can I customize a liquid filling machine?
Absolutely! Customization is one of our specialties. Share the details of your liquid type, filling volume, and production capacity, and our team will design the perfect machine to match your requirements.
9.Can I visit your factory?
Of course! We welcome you to visit our factory to see our machines in action and discuss your project in person. Contact us to schedule your visit.
