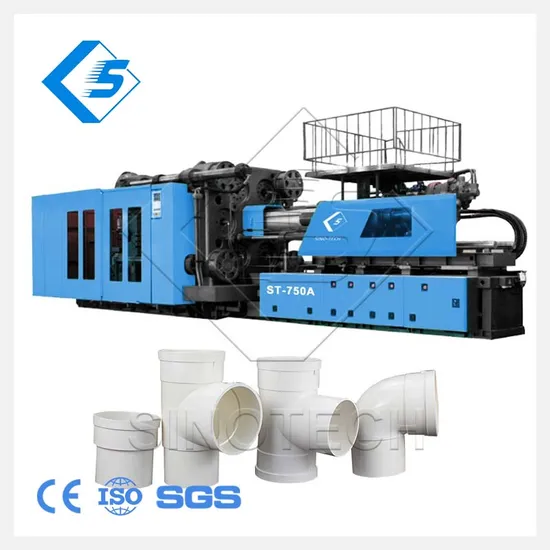

Horizontal 380ton PVC UPVC Electric Conduit Pipe Fitting Plastic Injection Moulding Molding Making Machine for Cross 45/90 Deg Long Elbow

Product Description

Horizontal 380Ton PVC UPVC Electric Conduit Pipe Fitting Plastic Injection Moulding Molding Making Machine for Cross 45/90 Deg Long Elbow
Product Description
SINO-TECH ST-380SEIII injection molding machine is designed for plastic dustbin, chairs, car bump,pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-380SEIII with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		380SElll
		3800-2868
Screw diameter	mm	65	75	85
Theoretical shot volume	cc	1244	1657	2128
Shot weight (PS)	g	1132	1508	1936
Shot weight (PS)	oz	40.0	53.3	68.4
Length/Diameter ratio	L/D	23.9	20.7	18.3
Injection pressure	MPa	231	173	135
Injection rate	cm³/sec	348	463	595
Injection stroke	mm	375
Max. Screw speed	rpm	170
Plasticizing capacity (PS)	g/s	57.9	77.8	100.5
Injection unit force	Ton	12
Carriage stroke	mm	435
Clamping force	Ton	380
Max. daylight	mm	1530
Clamping stroke	mm	780
Distance btwn. Tie bars	mm	740*740
Min mould dimension	mm	520*520
Mould thickness range	mm	250-750
Ejector force	Ton	16.6
Ejector stroke	mm	210
No. of ejector pins	unit	13
Max. motor power	kW	50.7
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	275
No. of heater zones	unit	5+1
Heater input power	kW	28.99
Ultimate capacity	kw	80.69
Current	A	110.3
Net weight	Ton	14.68
Oil filling capacity	L	700

Seller Recommendation

Detailed Photos

Application


Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
