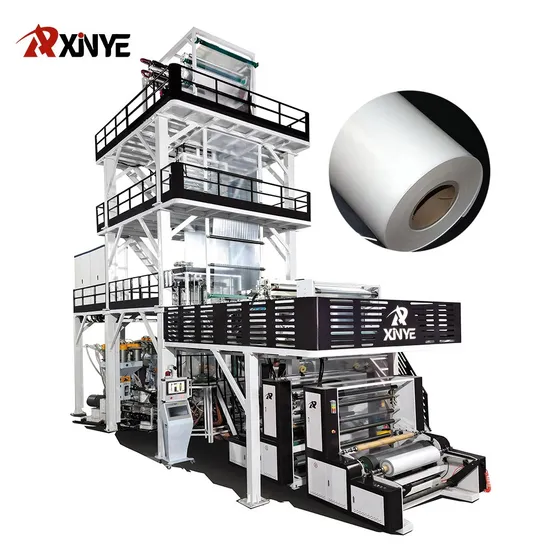

2025 Seven Layers Co-Extruding Traction Rotating Film Blowing Machine Set

2025 Seven Layers Co-Extruding Traction Rotating Film Blowing Machine Set

US$25,000.00
1-9 Pieces
US$19,000.00
10+ Pieces

Basic Info.

Model NO.
F3B-TR-1600
Type
Multi-Layer Co-extrusion Film Blowing Machine
Raw Material
HDPE
Maximum Folding Width of Film
1500mm
Screw Diameter
55mm
Automation
Automatic
Computerized
Computerized
Machine Weight
14t
Certification
CE
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Blow Moulding Type
Blow Moulding Type
Plastic Processed
PE
Power
140kw
Transport Package
in Standard Wooden Case
Specification
10*5.5*9.5m
Trademark
Elight
Origin
Zhejiang, China
HS Code
8477301000
Production Capacity
50set/Year

Packaging & Delivery

Package Size
1000.00cm * 700.00cm * 1100.00cm
Package Gross Weight
68.000kg

Product Description

Product Description Three-to-Seven-layer co-extruding upper traction rotation blown film machine unit is designed and developed according to the market demands at the basis of domestic and foreign advanced technology. It is applied to packing with medium and high end film. The film is of well barrier property, retaining freshness, moisture-proof, frost prevention, oxygen proof and oil-proof. So it can be widely applied to the light-weight packing, such as fresh fruits, meat, pickles, fresh milk, drink, medicine, etc.
Use:
Three to seven layers co-extruding die head adopts the internationally advanced superposed die heads, of which each layer can heat and receive thermal insulation medium independently and insulate the heat effectively, which is good for blowing and making plastic film with different temperature. The die head is of advanced construction to ensure the steady fluid and thickness of film.
The traction system adopts±360°swing rotation in horizontal direction to meet the requirements for high precision and high-speed printing. The cooling system in IBC is internationally advanced technology today, The system adopts four ultrasonic wave probes to count the tested information, and at the same time, to guarantee the size of the film bubble steadily while changing hot air in the film bubble through the control and regulation of input air. It can increase the production output as well as its transparency and added value. Computer control system.It is equipped with fully automatic winding device with winding, unwinding, cutting, and unloading functions. The EPC system makes winding tidy and trim, improving work efficiency, lowing down labor intensity, reducing scrap material while changing winding roller. All systems are central controlled by computer.
MAIN TECHNICAL VARIABLES
model
F3B-TR-1300
F3B-TR-1600
F3B-TR-1800
F3B-TR-2200
suitable material
LDPE LLDPE HDPE
LDPE LLDPE HDPE
LDPE LLDPE HDPE
LDPE LLDPE HDPE
layfat width of film
1200mm
1500mm
1700mm
2000mm
thickness of film
0.02-0.20mm
0.02-0.20mm
0.02-0.20mm
0.02-0.20mm
max.extrusion output
160kg/h
200kg/h
240kg/h
340kg/h
screw diameter
Φ45/Φ55/Φ45mm
Φ50/Φ60/Φ50mm
Φ55/Φ65/Φ55mm
Φ70/Φ85/Φ70mm
screw ratio
L/D30:1
L/D30:1
L/D30:1
L/D30:1
screw speed
10-100r/min
10-100r/min
10-100r/min
10-100r/min
power of main motor
15kw/22kw/15kw
18.5kw/30kw/18.5kw
22kw/37kw/22kw
37kw/55kw/37kw
rir ring structure form
double air vent air ring
rotary traction form
horizontal ±360°
total power
120kw
140kw
160kw
200kw
weight of machine
12T
14T
16T
20T
overall dimension (L*W*H)
9.5*5.0*9.0m
10*5.5*9.5m
10*6.0*10.5m
10.5*7.0*11m

Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang.We are an experienced manufacturer in polyethylene film,bubble film extrusion machines, and related bag making machines field since 1995. At same time we offer one-stop service for the full production lines such as arrange other auxiliary equipments for customers from all over the world. Main Products are : 1 .Mono Layer and multi-layers Polyethylene, Polypropylene, Biodegradable, bubble wrap, stretch film , shrink film extrusion line; 2. Kinds of plastic shopping and packing bags, bubble wrap bags, kraft paper bubble envelope production line; 3. Other auxiliary equipments like printing machine , recycle machine, crusher, mixer and so on . We have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
THE AFTER-SALE SERVICE OF RUIAN XINYE PACKAGING MACHINE CO.,LTD
1.After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
2.After the commissioning, we will package the equipment by the standard export package for shipment.
3.According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
4.Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
FAQ
1.Q: Are you a factory or trading company?
A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
