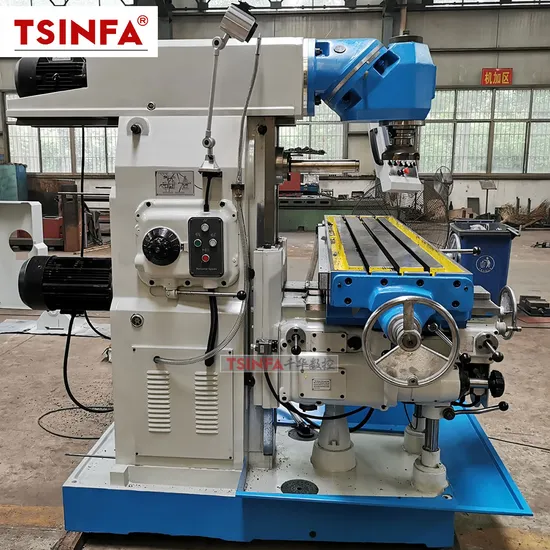

Factory Outlet New Metal Universal Milling Machine Wn736D High Quality

Factory Outlet New Metal Universal Milling Machine Wn736D High Quality

US$16,000.00-18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WN736D
Type
Universal Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Pallet
Specification
2000x2000x2250
Trademark
TSINFA
Origin
China
HS Code
8459590000
Production Capacity
500

Product Description

Product Description
The main performance characteristics:
The universal milling machine can be equipped with various tools to machine milling planes, slopes, grooves, etc. If universal milling heads, circular workbenches, indexing heads, and other milling machine accessories are used, the machining range of the machine tool can be expanded. Suitable for processing special steel molds, mining equipment, industrial equipment, and other heavy and large-scale machinery. When the workbench rotates a certain angle and the indexing head attachment is used, various spiral surfaces can be machined.
-Milling head can be rotated 360 degrees -Worktable 45 degree rotation (optional for some models)
-XY axis automatic feed -Worktable electric lift
Product Parameters

Specification Unit WN736 WN736A WN736C WN736D WN736B
( Servo Motor )
Table size mm 1500*360 1600*360 1600*320 2000*400 1600*360
Numbers,width distance between T - slot mm 3*18*80 3*18*70 3*18*70 3*18*90 3*18*80
Table travel (X/Y/Z) mm 900*320*450 900*300*400 800*300*400 1180*300*365 1200*300*400
Travel of Arm mm 600 600 600 600 600
Swivel angle of the vertical milling head degree ±360° ±360° ±360° ±360° ±360°
Max. rotary angle of table degree / ±45° ±45° / ±45°
Distance from horizontal spindle to ram bottom mm 170 200 200 200 210
Spindle taper taper ISO50(H) ISO40(V) ISO50(H) ISO50(V) ISO50(H) ISO50(V) ISO50(H) ISO50(V) ISO50(H) ISO50(V)
Level spindle speed grade steps 12 12 18 18 12
Level spindle speed range rpm 60-1800 60-1800 30-1500 30-1500 60-1800
Milling Head spindle speed grade steps 11 12 12 12 12
Milling head spindle speed range rpm 35-1600 60-1700 60-1700 60-1700 60-1700
Grade of the work-table feeds steps 8 6 18 18 6
Range of feed speeds mm/min 22-555 460/360/90 X: 23.5-1180, Y:23.5-1180, Z:8-394 X: 23.5-1180, Y:23.5-1180, Z:8-394 Stepless 0.1-700
Speed of rapid travels mm/min 555 X:1360, Y:1140, Z:300 X:2300, Y:2300, Z:770 X:2300, Y:2300, Z:770 2000/700
Main motor power kw 4(H) 4(V) 4(H) 4(V) 7.5(H) 4(V) 11(H) 4(V) 5(H) 4(V)
Feed motor kw 0.75 1.5 1.5 3 1.5
Coolant pump w 40 40 125 125 40
Gross weight/Net weight kg 2300/2100 2800/2400 3500/3300 4500/4250 2800/2400
Overall dimensions(L W H) mm 1900X1600X2050 2000X1900X2050 2050X2050X2050 2400X2000X2150 2000X1900X2050
Packing Size mm 2000X1700X2250 2100X2000X2250 2250X2250X2250 2500X2260X2250 2100X2000X2250
