Agricultural Machinery Tractor Supension Finger Wheel Hay Rake

Product Description

Yucheng Hongri Machinery Factory
Product Technical Parameter
Name: Traction Rotary Hay Rake for Tractor Finger Plate Mounted Farm Implement Grass Collecting Machine
Product description:The 9LZ series hay rake adopts the traditional double-sided structure design. It is a cost-effective model. It is very light and easy to transport and fold, and is very suitable for small pasture operations. The width of the slats can be adjusted easily and quickly, perfectly adapting to the baling width. The sturdy suspension frame can meet more matching horsepower, and the loose grass, residual straw, and residual film in the soil can be collected through the densified rake teeth.

Model	(mm)	(mm)	No. of finger(set)	(kw)	(mm)	(kg)	(km/h)
9LZ--3.0 three-point suspension	3000	2600	4	13--40	2500*3000*1500	265	10--15
9LZ--3.0 hydraulic traction	3000	2800	4	≥30	3500*3000*1500	375	10--15
9LZ--4.2 hydraulic traction	4200	2500	6	≥30	5200*4200*1500	610	10--15
9LZ--5.5 hydraulic traction	5500	2500	8	≥30	6000*5500*1500	700	10--15
9LZ--6.5 hydraulic traction	6500	2500	10	≥30	7000*6500*1500	780	10--15
9LZ--7.5 hydraulic traction	7500	2500	12	≥30	8000*7500*1500	900	10--15

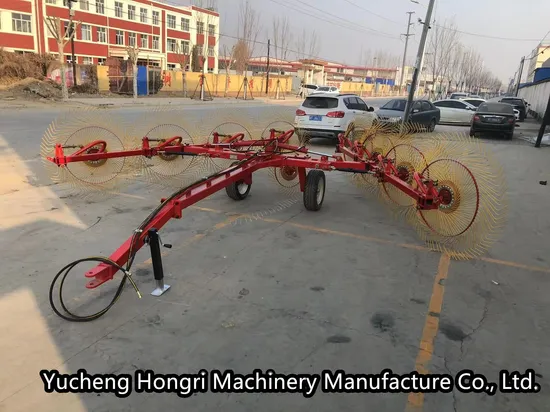

Product Images:
Packing & shipping:
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers
Our Company :

Business type	Manufacture
Location	Shiliwang Industrial Zone of Yucheng, Shandong,China
Year Established	2003
Occupied area	50 Acres
Company certification	CE, ISO9001
Main product	disc harrow, disc plough, trailer, boom sprayer , rotary tillers, potato planter ,plowing blade, plough blade, soil-loosening shovel and so on. With good quality, excellent performance, our products annually export to countries around the world, and we have gained the majority of customers trust.

After Service: 12 months guarantee of the main parts, we will send the guarantee parts together with the machine in your next order or we can send them by air express if you need it urgently.
FAQ:
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose Hongri for cooperation?
A: Comparing with our competitors, we have much more advantages as follows:
1. More than 30years in manufacturing farming machine.
2. More Professional Sales staffs to guarantee the better service.
3. More agri machines for your choice.
4. More New products into your range to avoid price competition.
5. Larger quantity production and shipment.
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days.
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms.
10. More famous brand: Hongri" brand and "CE"ceitification.
11.Lower repair rate and bad review rate.
12. We have American Branch to show our main products. We can give customers best service

If you have any questions, please feel free to contact me.
CONTACT ME :+86 17561789823
Felix
