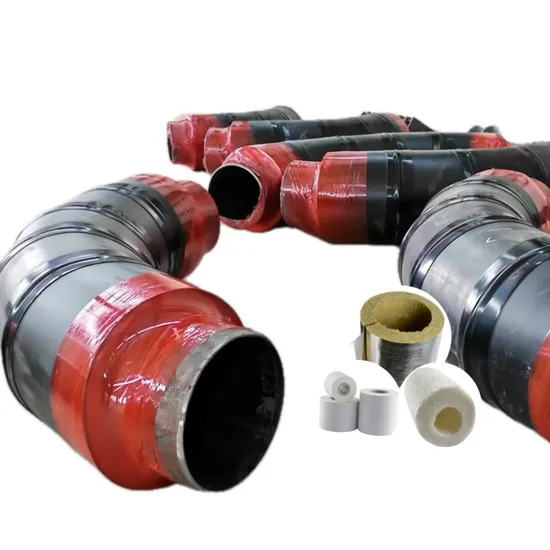

Insulation Fittings Efficiently Transport Heat Energy

Product Description

Insulation fittings efficiently transport heat energy
Product Parameters

Technics	steel tube,insulation layer, outer casing pipe
Shape	elbow
Place of Origin	Hebei, China
Customized support	OEM
Model Number	DN10-DN2600
Connection	Welding
Standard	ASTM
Surface treatment	Polyurethane coating

Product introduction Rock Wool:
Properties: Rock wool is a fibrous insulation material made of natural rocks (such as basalt, diabase, etc.) as raw materials, after melting at high temperature by centrifugation or blowing. Its thermal conductivity is low, generally about 0.036 ~ 0.048W/(m · K), and the thermal insulation effect is good; With class A non-combustible fire performance, can effectively prevent the spread of fire, improve fire safety; It also has a certain ability to absorb sound and reduce noise, which is helpful to reduce the noise generated by pipeline operation.
Aluminum silicate cotton:
Properties: Aluminum silicate cotton is made of hard clay clinker and other raw materials, and is processed by arc furnace melting, blowing or spinning. Its high temperature resistance performance is excellent, long-term use temperature can reach 1000ºC or so, short-term use temperature is higher, very suitable for high temperature medium pipeline pipe insulation; The thermal conductivity is about 0.03 ~ 0.09W/(m · K), and the thermal insulation effect is good; Good chemical stability, acid and alkali corrosion resistance, can adapt to more complex chemical environment.
Polyurethane foam:
Properties: Polyurethane foam is made of isocyanate and polyol by chemical reaction foaming. Its thermal insulation performance is superior, the thermal conductivity can be as low as 0.022 ~ 0.028W/(m · K), the closed-cell rate is high, can effectively prevent heat transfer; Soft and elastic, can be tightly fitted to the surface of pipe fittings, sealing performance is good; However, its fire resistance is relatively weak, and it is usually necessary to add flame retardants to improve it.Outer cover materialGalvanized iron sheet:
Performance characteristics: Galvanized iron sheet is coated with a layer of zinc on the surface of the ordinary iron sheet, and the zinc layer can play a role in preventing corrosion and extending the service life of the pipe fitting. It has a certain strength, can play a protective role in the internal insulation layer and pipe fittings, to prevent external collision, scratching and other damage; Moreover, processing is relatively easy, and processing operations such as cutting and bending can be performed according to needs, which is convenient for installation.
Color steel plate:
Performance characteristics: Color steel plate is on the basis of galvanized steel plate and then color coating treatment, in addition to the anti-corrosion, protection and other functions of galvanized iron sheet, but also has better aesthetics, you can choose different colors according to different use scenarios and design requirements, so that the insulation pipe better into the surrounding environment; At the same time, its strength can also meet the general protection needs.
Performance characteristics: FRP is a new type of material made of glass fiber and its products (such as glass cloth, glass tape, glass felt, etc.) as reinforcement material, with synthetic resin as matrix material, through a certain process composite. It has the advantages of light weight, high strength, corrosion resistance, good weather resistance, etc., can well resist the influence of external environmental factors on the insulation pipe, and can be made into various shapes through the mold, which is convenient to adapt to different shapes of pipe fittings.
Packaging & Shipping
Company Profile
Our Advantages
FAQQ1, are you a manufacturer or a trading factory?
A: We have been a factory for more than 10 years and can provide a variety of customized products.
Q2, if OEM is accepted?
Answer: Welcome to custom sample. We can also do your own logo and packaging.
Q3, what should I do if I don't know which one to choose?
A: Please don't worry about this, we have professional engineers, sales staff, can give you advice.
Q4, what is your payment period?
A: We can accept TT, Western Uniono, LC, credit card and Alipay, others please contact us.
Q5, can you accept the sample?
A: Of course we are happy to provide samples, you are responsible for shipping costs.
Q6, do you have more ways to contact you?
A: Yes, you can contact us through the information on the website.
Q7, what are the advantages of your product?
1. Good quality and competitive price.
2. Strict quality control during production.
3. Professional team work, from design, development, production, assembly, packaging and transportation.
4. Experience in shipping coatings to different countries.
Q8, can we visit your factory?
Warmly welcome you to visit our factory!
