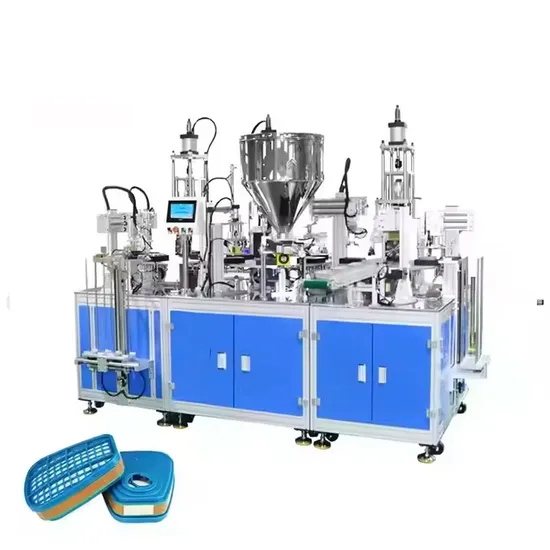

Automatic Activated Carbon Protective Mask Filter Box Welding Machine

Product Description

Automatic activated carbon protective mask filter box welding machine
Product Parameters

Name	Cartridge Filter Production Machine
Voltage	220V 50-60HZ
Power	12000W
Air pressure	0.5~0.7Mpa 30L/min
Capacity	10-12pcs / min
1imension	3000x1400x1800mm (custom-made is available)

Product Description
Cartridge Filter Production Machine is used for quantitative carbon loading of anti virus mask filter carbon boxes, and for ultrasonic welding of the assembly of the top cover cotton and the bottom box. It adopts a design of 3 turntables with multiple workstations, one output and one output; The assembly of the bottom box and compressed cotton is ultrasonic welded, and the assembly of the top cover and compressed cotton is ultrasonic welded. The carbon powder is manually guided into the large capacity stainless steel hopper box, and the quantitative cup is automatically pushed out to load carbon in a straight line. A pneumatic vibrator is used to ensure the stability and consistency of the carbon powder, and the operation is simple and convenient. It is equipped with a safety protective cover for safe use.
Company Profile
We supply the various types of nonwoven fabric used as the filter media in the field of air and liquid filtration. The main application includes personal care respirators, home care air cleaner, heavy duty vacuum cleaner and automobile cabin air filter products. Our product categories include PP melt-blown nonwovens, PP spun-bonded nonwovens, PET fibre hot-rolling nonwovens, PET filament spun-bonded nonwovens, PET filament thermos-bonded nonwovens, Needle punched nonwoven, Water punched nonwoven, Activated carbon filter media, Ultrasonic composite nonwovens, etc.
Our main products:
PP melt-blown nonwovens: We developed our own multiple electret charging technology, which combined hydro electret charging and static electret charging technology together. The multiple electret charging technology provide product much less filtration accessioin after years of storage. Together with our customized formula with electret master batch, patented high voltage charging equipment with special designed charging panel. The filter cloth has high filtration efficiency with lower penetration pressure and can keep stable electrostatic feature for longer time.
PBT melt-blown liquid filtration media: We have modified PBT raw resin so as to greatly improve its melting characteristics in the melt-blown process. It is regarded as an ideal fuel filtration media and widely used for oil filter in the car due to its high temperature usage and stable chemical property.
We produce melt-blown nonwovens which is mainly used as filter media in the application of air filtration and purification. We are specialized in melt-blown technology and have 20 years of experience in melt-blown nonwovens production. We developed our own electret charging equipment and electret master batch, adopting unique formula, to help with our nonwovens reach higher filtration efficiency and lower air penetration pressure. Our factory has five 1.6 meter wide automatic production lines for PP nonwovens material and two production line for PBT material. PP melt-blown nonwoven fabrics fit for middle to high efficiency filters, ranging from F5 - F9 standard to H10 - H12 standard. PBT melt-blown nonwovens can be used in the production of auto fuel and oil filters.
We can also source other nonwoven filter media from China supplier to meet your requirement of panel filters, bag filters, rigid bag filters and HEPA filters, if possible. For eg. Polyester filter nonwovens, pleated composite filter nonwovens, PP needle-punched nonwovens, activated carbon filter nonwovens, etc. We welcome you to send us detailed specification of nonwovens used as filter media in your production.
FAQ
Q1:How can we guarantee quality?
A1:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q2:How and how long can I get a sample to check your quality? Can I expect to get the sample?
A2:After product and price confirmation, you can require for samples to check our quality. the samples are free and will be ready fordelivery in 3-5 days. The samples will be sent to you via express and arrive in 3-5 workdays. You can use your own express accountor prepay us if you do not have an account.
Q3:Can you do the design for us?
A3:Yes. we are a perfessional manufacturer who can provide you OEM service.
Q4:What about the lead time for mass production?
A4:It depends on the order quantity and the season you place the order. Generally speaking, We suggest that you start inquiry two months before the date you would like to get the products at your country.
Q5:What kind of payment do you accept ?
A5:We accept T/T(Wire transfer), Please be sure that we can receive the same amoun
