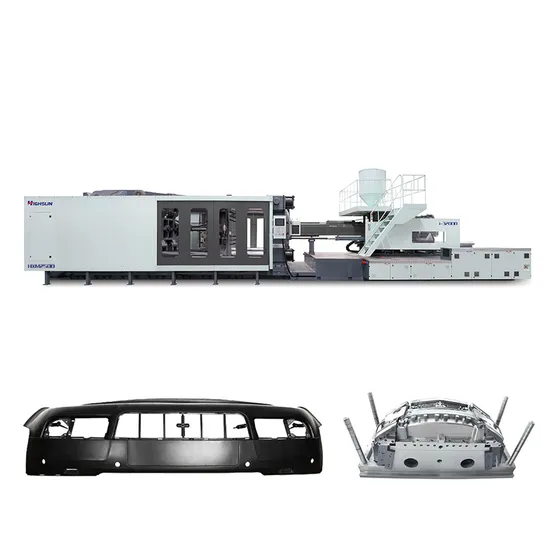

Big Size Long Service Life New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm2500
| US$100,000.00-550,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM2500
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, SGS, TUV
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
According to Countries
Showroom Locate
Malaysia,Indonesia,Turkey,Mexico,Uzberkista,Mn
Condition
100% New
Machine Weight
175 Ton
Transport Package
Standard Packing
Specification
19.5*4.00*5.20
Trademark
HIGHSUN
Origin
China
HS Code
847710
Production Capacity
7000sets/Year
Product Description
| MODEL: HXM2500 | |||||
| TECHNICAL PARAMETER TABLE | A | B | C | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 170 | 185 | 200 |
| SCREW L/D RATIO | L/D | 23 | 22 | 21 | |
| INJECTION CAPACITY IN THEORY | cm3 | 24059 | 28493 | 33300 | |
| INJECTION WEIGHT(PS) | g | 21894 | 25928 | 30303 | |
| oz | 772.2 | 914.5 | 1068.8 | ||
| INJECTION PRESSURE | MPa | 186 | 157 | 134 | |
| INJECTION RATE | g/s | 1424 | 1686 | 1970 | |
| PLASTICIZING CAPACITY | g/s | 127 | 170 | 220 | |
| SCREW SPEED | rpm | 65 | |||
| CLAMPING UNIT | CLAMPING FORCE | KN | 25000 | ||
| MOVING MOULD-PLATE STROKE | mm | 1900 | |||
| MAX. MOULD HEIGHT | mm | 1800 | |||
| MIN. MOULD HEIGHT | mm | 800 | |||
| SPACE BWTWEEN TIE-BARS (W*H) | mm | 1850*1700 | |||
| HYDRAULIC EJECTOR FORCE | KN | 520 | |||
| HYDRAULIC EJECTOR STROKE | mm | 450 | |||
| EJECTOR NUMBER | n | 33 | |||
| OTHERS | PUMP PRESSURE | MPa | 17.5 | ||
| MOTOR POWER | KW | 47+47+47+47 | |||
| HEATING CAPACITY | KW | 170 | |||
| MACHINE DIMENSION (L*W*H) | m | 19.50*4.00*5.20 | |||
| MACHINE WEIGHT | t | 175 | |||
| OIL TANK CAPACITY | L | 3700 | |||
