1sc High Pressure Braided Hose Series En857 1sc ISO 11237 Hydraulic Hose
Basic Info.
Model NO.
1SC
Color
Black
Dash
4-16
mm
6.3-25
Inch
1/4-1
I.D
6.5-26.2
O.D
12.6-34.3
Max W.P
22.5-8.8MPa
Min B.P
90-35.2 MPa
Min B.R
75-230 mm
Transport Package
Wooden Box or Carton
Specification
6.3-25mm
Trademark
ARGUS
Origin
China
HS Code
4009210000
Production Capacity
1000000 M /Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg
Product Description

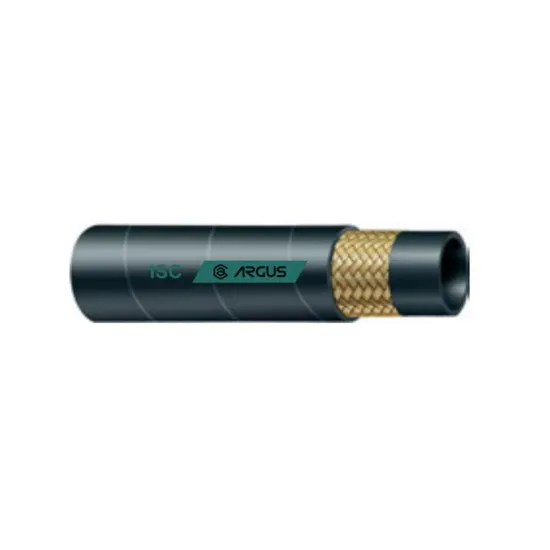

Product Description1SC hydraulic hose is a hydraulic hose designed to withstand medium to high pressures. It is made of high-quality materials and has an operating temperature range of -40°C to 100°C. It is made of a special synthetic inner rubber layer reinforced with a high-strength steel wire braid. This construction provides excellent flexibility and durability, allowing the hose to bend and twist without kinking or breaking. The high-strength steel wire braid also provides strength and support, ensuring that the hose can withstand high pressures without breaking. Another important feature of the 1SC hydraulic hose is its resistance to oil and abrasion. The synthetic inner rubber layer is oil-resistant, ensuring that hydraulic fluid can flow smoothly through the hose without contamination. The outer rubber layer is also abrasion-resistant, protecting the hose from wear caused by external factors such as friction or impact.| Type | Hose Size | 1.D | 0.D | Max WP | Min B.P | Min B.R | W.T | ||||||
| Dash | mm | inch | Min | Max | Min | Max | MPa | Psi | MPa | Psi | mm | kg/m | |
| 1SC-04 | -4 | 6.3 | 1/4 | 6.5 | 6.9 | 12.6 | 13.4 | 22.5 | 3260 | 90.0 | 13050 | 75 | 021 |
| 1SC-05 | -5 | 8 | 5/16 | 8.0 | 8.5 | 13.5 | 14.5 | 215 | 3120 | 86.0 | 12470 | 85 | 0.23 |
| 1SC-06 | -6 | 10 | 3/8 | 9.5 | 10.0 | 15.5 | 16.5 | 18.0 | 2610 | 72.0 | 10440 | 90 | 0.30 |
| 1SC-08 | -8 | 12.5 | 1/2 | 12.7 | 13.3 | 18.9 | 199 | 16.0 | 2320 | 64.0 | 9280 | 130 | 0.39 |
| 1SC-10 | -10 | 16 | 5/8 | 15.9 | 16.7 | 22.1 | 23.1 | 13.0 | 1885 | 52.0 | 7540 | 150 | 0.47 |
| 1SC-12 | -12 | 19 | 3/4 | 18.9 | 19.7 | 25.5 | 26.5 | 10.5 | 1520 | 42.0 | 6090 | 180 | 0.55 |
| 1SC-16 | -16 | 25 | 1 | 25.4 | 26.2 | 33.1 | 34.3 | 8.8 | 1280 | 35.2 | 5100 | 230 | 0.84 |
