20FT/40FT 60-150ton Cargo Transport Port Using Roll off Trailer/Mafi Container Trailer Mafi Semi Trailer

Product Description

20ft/40ft 60-150Ton Cargo Transport Port Using roll off trailer/mafi container trailer mafi semi trailerProduct Description
Roll trailer
The roller trailer is designed for use in stevedoring and transporting of 1x40ft or 2x20ft ISO cargo containers or loose cargo or big non knocked-down goods on RO-RO vessels or in port.With solid tire and running system. Payload is larger. Wood floor meet Austrailian standrad, Option with steel floor.
PRODUCT PARAMETERS:

Overall Size	12640*2650*742MM
Usage	Transport 20ft/40ft Containers or loose cargo on Roro Ship
Rated Capacity	60000kgs
Tare Weight	8000kgs
Loading Deck L	12400mm
Rear Overhang	3500MM
Axle Center Distance	8315mm+1100mm
Type	Low Bed
Wood Floor	Tropical Hard Wood
Axles	Port Trailer Axles	4 sets
Tyre	28"*22"*22" pressed-on solid tyre	10 sets(with 2sets spare tyres)
Material	High strength low alloy steel with 345MPa yield strength is used for welded "H" beam and fabricated parts
Main Beam	Fabricated "H" beam 540*200mm Top Plate:22mm Bottom Plate:25mm
Deck	45mm T plankwood
Kingpin Plate	16mm Steel Plate Q345B
Kingpin	2" bolt on type
Features	Running Gear 2 rocker arms lowered box construction 4 axles 140x140, φ100/80mm Paper roller bearings (#30216/32020) 8 steel reinforced solid rubber tires(22*16*16)

Product Features
Advanced technology: Major parts and components of the trailer are processed by advanced equipments.
Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
Tool Box: Large capacity water-proof detachable tool box.
Hot-rolled structural steel welded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.
Tested and proven structure of cargo box is constructed with profiled steel from, corrugated plate and mold pressed steel stake.
Reliable dual circuit air brake with quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.

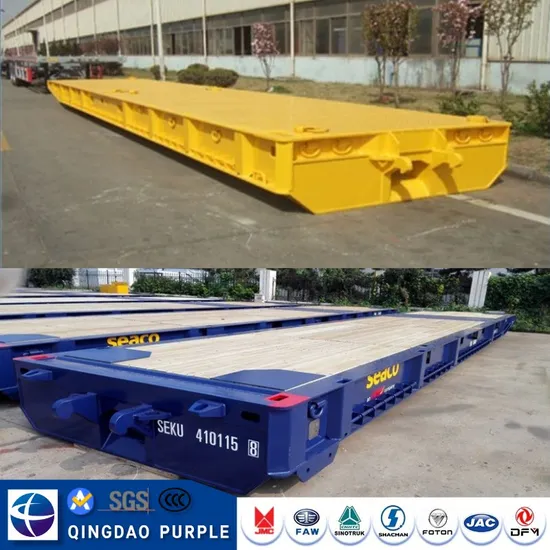

Detailed Photos
Steel Structure:
Material: High Strength low alloy steel Q345(350Mpa yield strength) is used for welding I-Beam and Q235(235Mpa yield strength) is used for the fabricated parts.
Main Beams: 500mmx146mmx6mm web welded I-sectionmain beams.
OEM Parts Configuration:
Could be adjusted according to customer's request.
