High Quality Plastic Pipe Fitting Injection Machine
| US$15,000.00-18,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-140T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description

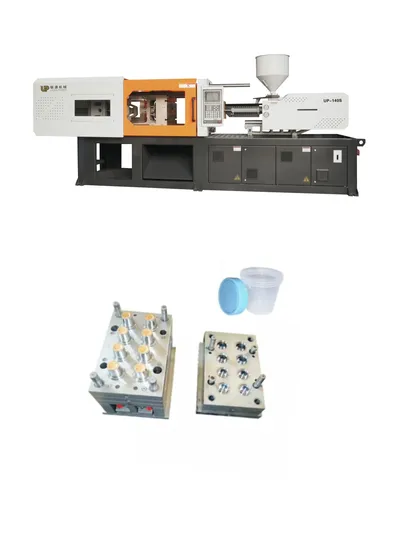

China Servo Injection Molding Machine
Introducing the advanced servo injection molding machine from Ningbo Union Power Machinery Co., Ltd. This cutting-edge machine offers precision and efficiency for all your molding needs.
A. Modulus of Capacitance
Position, size, and maximum allowable modulus of capacitance
Minimum closure thickness of the injection molding machine guide pillar (Green column)
B. Nozzle Parameters
Spherical diameter of the nozzle
Nozzle aperture
Nozzle outer diameter
Maximum nozzle extension length
Positioning aperture
C. Code Mold Parameters
Code mold hole
Slot size
D. Ejection Mechanism
Position of the ejection point
Diameter of the ejector rod
Ejection force (if necessary)
Ejection stroke
E. Mold Opening Stroke
Maximum opening distance
Experience seamless molding operations with the China Servo Injection Molding Machine. Trust in the quality and reliability of Ningbo Union Power Machinery Co., Ltd. for all your injection molding needs.
| Technical Parameters | Model UP-140T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 38 | 42 | 45 |
| Shot Volume (cm3) | 215 | 260 | 302 |
| Injection weight (g) | 194 | 237 | 272 |
| injection pressure (Mpa) | 186 | 152 | 132 |
| Screw speed (rmp) | 215 | ||
| Clamping Unit | |||
| Clamping force (KN) | 1400 | ||
| Open stroke (mm) | 380 | ||
| Max Mold height (mm) | 450 | ||
| Min Mold height (mm) | 135 | ||
| Space between tie bars(mm) | 420*420 | ||
| Ejector force (KN) | 46 | ||
| Ejector stroke (mm) | 120 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 13(14) | ||
| Heating power (KW) | 8.2 | ||
| Machine dimension (M) | 4.2*1.2*1.9 | ||
| Machine weight (T) | 3.4 | ||
| Oiltank cubage (L) | 190 | ||
