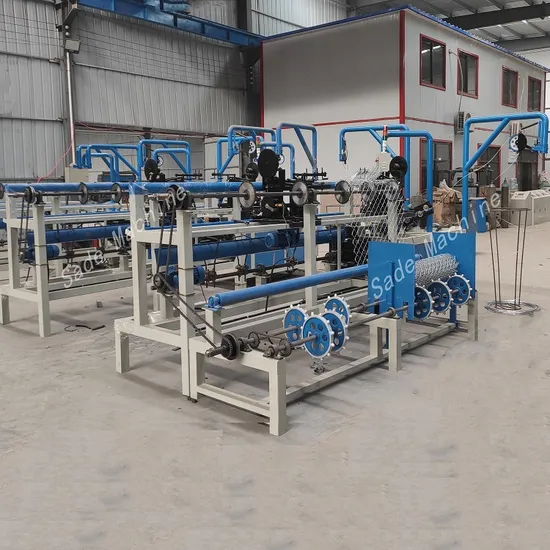

PLC Automatic Chain Link Fence Machine From China

Product Description

product description
It is suitable for high quality low-carbon wire, galvanized wire, pvc cpated wire, aluminum alloy wire, aluminum-clad steel wire, stainless steel wire etc.
The finished chain link mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing. Especially, well suitable for a wide range of application, for example for enclosing Lawn, Road. Steel diamond mesh has a heavy galvanized coating to ensure a long life.
technical parameters

Type	New advanced model -Single wire with Double moulds
Wire Diameter(mm)	1.6-4.5
Mesh Size(mm)	25*25-100*100
Width(m)	2-6
Speed(m2/h)	60-260
Raw material	Galvanized wire, PVC coated wire, etc.

Detailed Images

Wire Feeding Frame	PLC:Mitsubish,Japan	Mainwire Feed Tensioner
Compact Mesh Machine	8.8 Reinforced Screw	2pcs Servo motor Feed
Weaving wire machine	Weaving Platform	Lock Edge Machine
Mould	Electrical Carbinet	Production line

Our advantage

1. It covers small area
2. The machine is controlled by PLC famous brand , automatic controller, easy to operate.
3. Two die double wire spiral feeding ,higher capacity
4. Automatically weaving accurate mesh size
5. The chain link fence is automatically wond to form rolls when the desired length is manufactured.
6. One side or both sides of the end of the mesh is twisted or knuckled as required
7.We use standard 8.8mm reinforced screws ,work stable machine function
8.Automatic recycle lubracation system ,clean and convenient
9.Machine body with steel plate welding ,strong enough and heavy model .
