Slant Bed CNC Lathe Machine Center

Slant Bed CNC Lathe Machine Center

US$13,000.00
1-4 Pieces
US$12,500.00
5+ Pieces

Basic Info.

Model NO.
CLK520
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Slant Bed
High Precision
Transport Package
Plywwod
Specification
CLK520
Trademark
Allway
Origin
China
HS Code
84581100
Production Capacity
1000PCS/Year

Product Description

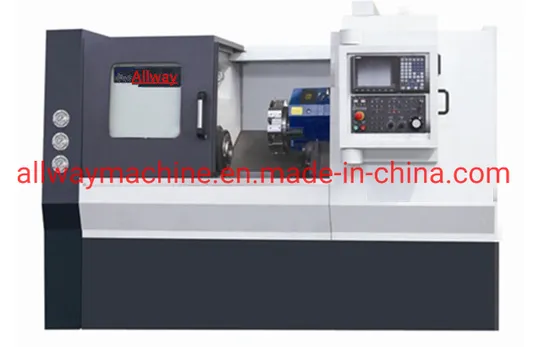

CLK520 SLANT BED CNC LATHE MACHINE
1. CLK520 SLANT BED CNC LATHE MACHINE SPECIFICATION
max. swing over bed mm 520
max. swing voer cross slide mm 320
max. processing length mm 500/1000
X/Z axis travel mm 220*500/1150
spindle nose A2-8
spindle bore mm 80/130
spindle drawing pipe diameter mm 60
max. spindle speed rpm 2500
chuck size inch 10
spindle motor power kw 7.5
X/Z position accuracy mm 0.016/0.02
X/Z repeatability mm 0.006/0.006
X/Z feed motor torque N.m 5/7.5
X/Z feed motor power kw 1.3/1.88
X/Z feeding speed m/min 10
tailstock travel mm 350
tailstock sleeve diameter mm 100
tailstock taper MT5#
tool post type 8 station hydraulic turret
cutting tool shape size mm 25*25
guide type Taiwan HIWIN linear guide way
total power capacity kvw 15
machine dimension L*W*H mm 2450*1600*1700
N.W. kg 4200

2.CLK520 SLANT BED CNC LATHE FEATURES
Taiwan high accuracy HIWIN linear
Taiwan famous brand ball screw
hydraulic magazine
hydraulic chuck
hydraulic tailstock
thur-hole type rotary cylinder
3. CLK520 SLANT BED CNC LATHE USAGE
This machine is applicable to automobile, motorcycle, electronics, aerospace,oil and other
industry. It could turn the conical surface, circular arc surface, end face of the rotary parts, could also
turn various metric and inch threads etc, with higher efficiency and higher precision in bulk.
4.CLK520 SLANT BED CNC LATHE STANDARD ACCESSORIES
GSK980TDC or Siemens 808D
Servo main motor 7.5kw
8 station hydraulic magazine
10" domestic thru-hole type hydraulic chuck
hydraulic tailstock
lubrication system
coolant system
lighten system
5.CLK520 SLANT BED CNC LATHE OPTIONAL ACCESSORIES
NC System: Mitsubishi E60, Fanuc Oi Mate-T
Main Motor: Servo11/15KW
Inverter15KW
Chuck: 10″Non-through hole hydraulic chuck
10″Non-through hole hydraulic chuck (Taiwan)
10″through hole hydraulic chuck(Taiwan)
12″Non-through hole hydraulic chuck (Taiwan)
12″through hole hydraulic chuck(Taiwan)
Chip conveyor
Steady Rest
Without hydraulic tailstock
