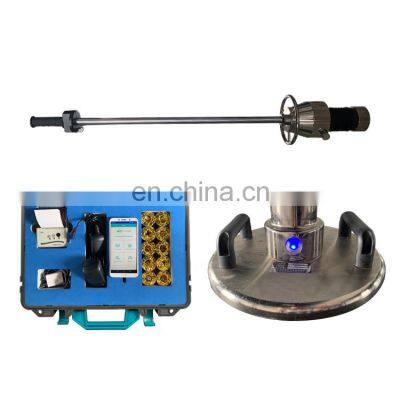

Portable Hand-held Light weight Falling Weight Deflectometer LWD

Product Description

Product Description
Portable Hand-held Lighweight Falling Weight Deflectometer LWDUsage Overview USAGE OVERVIEWThe GTJ-EVD-W type Light weight deflectometer is used to determine the deflection capacity of the subgrade under the dynamic load,thereby evaluating the bearing capacity and deformation of the subgrade. It is suitable for monitoring and testing theconstruction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil buildings under dynamicloads, especially in narrow areas, such as bridge (culvert) transition section and shoulder detection, existing line subgrade,etc. Compared with the static load test, the instrument can simulate the impact effect of high-speed train on subgrade, which canbetter reflect the actual stress of subgrade soil. It can quickly measure the dynamic deformation modulus Evd value.Product Description PRODUCT FEATURES1.The first APP data processing method in China has realized wireless data acquisition, wireless transmission and voice promptfunction.2.Provide a cloud transport port dockable engineering detection and management system to provide reliable data sources forreal-time data acquisition, online data analysis, large data management, etc.3.Imported sensors and some components are used, which has high test accuracy and more reliable test data.4.The wireless Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results. 5.It is easy to operate and fast to test. It takes only 35 seconds to detect a point.6.The Evd value is calculated automatically and the curve is displayed accurately and intuitively.7.Non-nuclear radiation and exhaust gas pollution, safe operation and environmental protection.Specification Test coverageProduct ModelGTJ-EVD-WApplication Soil TypesSoil-rock mixed fillers with particle size less than 1/4of the diameter of loading plateTest scope10Mpa≤Evd≤225MpaTest impact depth0~500mmWork environmentTemperature: -10~40℃ Humidity: ＜90%HR Work environment Loading deviceWeight: 15kg drop weight:10kgDropping height of drop hammer: 700±20mmMaximum impact force: 7.07kNShock duration; 18±1msLoading plateWeight:15kg Diameter: 300mmThickness: 20mm Handheld hostSpecificationsScreen size: 5 inchesSubsidence test rangeVolume: 145x70x10mmWeight: 110gStorage capacity0.10mm~2.00mmDepending on the memory of the phone, 10G storage capacityPower supply modeDepending on the cell phone batteryDisplay modeMobile App. English DisplayData transmission modeData wireless transmission, data cloud transmissionPrinterConnection modeWireless Bluetooth Printing Packing specification Host boxMaterial: Engineering plasticsVolume: 420x140x335mmWeight: 4.5kg Outer packing boxMaterial: Aluminum alloyVolume: 1220x395x380mmWeight: 56kgOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiatedour customerCompany Profile ` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive pricePacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service? A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms? A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
