Home Made Mini CNC Laser Engraving Machine

Product Description

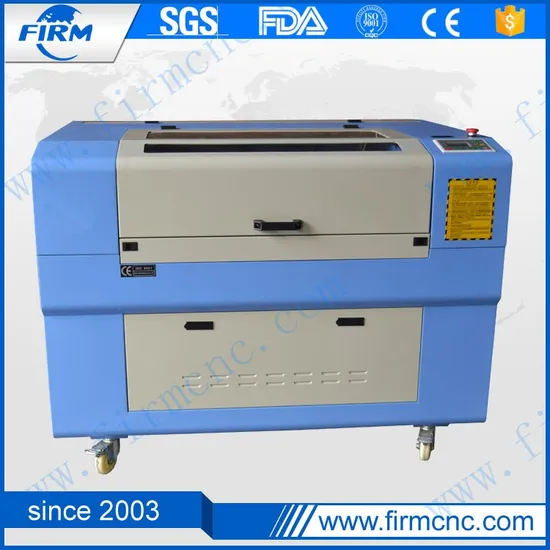

Home made Mini CNC Laser Engraving Machine
This machine can cut and engrave on the acrylic, metal, fabric, the max thickness can cut and engrave on the acrylic is: 20mm. We have many size of laser machine, as working size: 1300X900mm, 1300X2500mm, 600X900mm, 1400X1000mm 1600X1000mm and so on. Laser tube has 60W, 80W, 100W, 120W, 150W, using the Beijing RECI, or Chengdu Weegiant, having the honey nest table and the blade table.
Honey nest table fit for the soft materials, like leather, cloth, paper, fiber...
Blade table: Can withstand heavy materials, can hold 200kg, materials, suitable for cutting and engraving hard materials, like wood, acrylic and so on.
Features
1. The imported linear guide way ensures the high precision and the long service.
2. The stepper motor guarantees cutting and engraving smooth. We also have the SEVEO, The motor can be choice. But price is higher than the stepper motor.
3. With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.
4. High quality laser tube provides the strong beam and long service life.
5. More scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.
6. The anti-pollution design improves the stability of the whole machine greatly.
7. Configure higher power laser tube. Beijing RECI LASER TUBE, can be over 10000 hours.
Technical specification

Model	FMJ6090
Laser Power	40w/60W/80W/100W/130W/150W
Work ing Area	900*600
Carving Speed	0-64m/m
Cutting Speed	0-36m/m
Repeat Accuracy	≤ 0.05mm
Operating System	DSP Control
Photograph System	6.4M pixels
Cooling Method	Water-cooling
Power Consumption	≤ 1250W
Working Voltage	220V ± 10% 50Hz (60Hz)
Working Temperature	0 °C -45 °C
Working Humidity	5%-95%
Control Software	Glorystar software
Graph Supported Format	CAD,BMP,JPG,PNG,TIF,PCX,TAG, LOO,GIF

Application
Advertisement signs and marks making, handicraft industry, crystal accessories, paper
cutting, wood and bamboo industry, printing industry, clothing and leather industry,
garment industry, decorative industry, photo frame making and so on.
Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
After sale:
1. We would provide English Version working manual.
2. If you have any questions during using and maintaining,our engineers who could speak very good English would answer you online or by calls.
3. Machine warranty is one year. So if your machine has any unintentional damages,we would provide parts for free.
4. If your machine has big problems if by any chance,our engineers would arrive there to debug and fix.
5. Could be remote control if needed.
Our company
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate
The aim of Jinan Firm CNC Router is to continuously upgrade the technique, to help our customers produce the best quality and high precision products.
