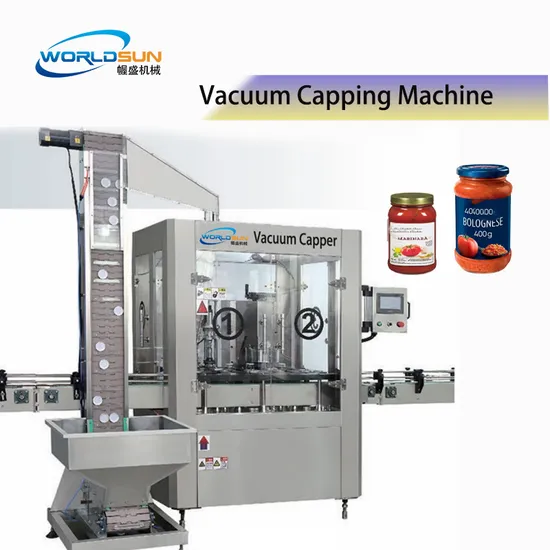

Vacuum Capping/Capper Machine for Glass Jars Full Automatic/High Speed
| US$11,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CM-V6
Packaging
Bottles
Automatic Grade
Automatic
Packaging Material
Plastic
Application
Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit
Usage
Inner Packing
Type
Cap Sealing Machine
Packaging Material Mechanical Properties
Full Automatic Filling and Sealing Machine
Material Type
Liquid
Power
1.5kw
Capacity
100bpm
Applicable Container
Plastic, Glass, Metal
Max. Container Diameter
110mm
Weight
1200kgs
Voltage
380-440V 50Hz 3phase, 220V 60Hz 3 Phase
Capping Unqualified Rate
<0.1%
Main Electric Components
Siemens
Control Voltage
24V
Transport Package
Wooden Box
Specification
1600*1200*2200mm
Trademark
Wordsun
Origin
China
HS Code
8422301090
Production Capacity
200 Sets/ Year
Product Description
Capping Machine for Screw Cap/ Flip-Top Cap/Ropp Cap/Lug Cap/Crown Cap capper machine Product Parameters| Item / Model | CM-1 | CM-4 | CM-6 | CM-8 | CM-10 | CM-12 | CM-15 |
| Number of Capping heads | 1 | 4 | 6 | 8 | 10 | 12 | 15 |
| Capacity-500ml (B/H) | 2000bph | 4000bph | 7000bph | 9000bph | 12000bph | 18000bph | 24000bph |
| Power | 0.55kw | 1.5kw | 1.5kw | 2.2kw | 2.2kw | 3.5kw | 3.5kw |
| Air consumption | 0.3m3/min. | 0.3m3/min. | 0.4m3/min. | 0.4m3/min. | 0.5m3/min. | 0.5m3/min. | 0.6m3/min. |
| Weight (T) | 0.6 | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.6 |
| Applicable container | Bottle ,cup,can,jar | ||||||
| Container materials | Plastic ,Glass,Metal | ||||||
| Cap type | Plastic Screw cap,Press-and-Turn cap,Flip cap, stopper cap, ROPP cap, crown cap ,twist-off cap | ||||||
| Container diameter | 30-110mm | ||||||
| Container height | 50-260mm, 100-350mm | ||||||
Flip top cap closing machine ROPP capping machine Screw capping machine
Stainless steel base mounted on adjustable floor levellers for easy alignment
Bearing frame and all surface components manufactured in SUS 304 stainless steel
Manual height adjustment via column
Manual and independent speed variation ,
Caps in chute photocell, machine will not work if there are no caps present on chute
Magnetic clutch capping head for screw caps,and the torque force adjustable.
Stainless steel Cap pickup mould with wear-resistant rubber lining, easy change and low cost materials.
Stainless steel electrical control panel with 24 volt auxiliary commands
Equipped with Siemens material on control system.
Automatic cap feeder, chute and applicating head
Main motor Overload clutch protection system
Alarm warning light and acoustics
Safety guarding with interlock devices
