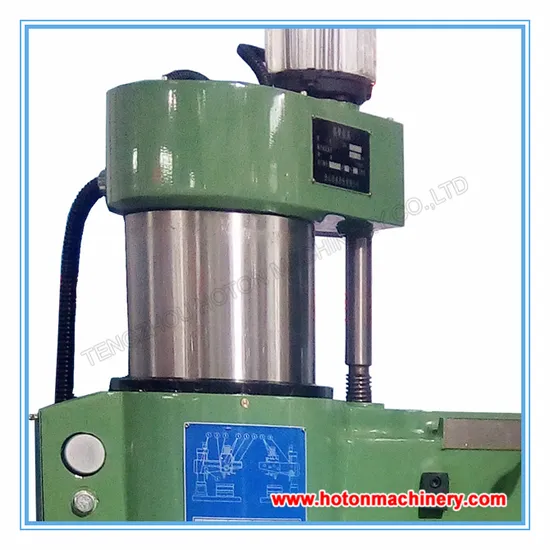

Universal Radial Drilling Machine (Rock Arm Driller Z3040X14)

Universal Radial Drilling Machine (Rock Arm Driller Z3040X14)

US$5,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3040x14 Z3040x10 Z3040x10/1
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
40mm
headstock travel
1015mm
motor
2.2KW
weight
2200kgs
spindle travel
270mm
Transport Package
Plywood Case
Specification
2200kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
5 PCS/Month

Product Description


RADIAL ARM DRILLING MACHINE FEATURES:
Hydraulic clamping
Hydraulic transmission
Hydraulic pre-selection
Electrical machinery double insurance
SPECIFICATIONS:
SPECIFICATIONS Z3040X14/III
Max.drilling dia(mm) 40
Distance from spindle axis to column surface (mm) 350-1370
Headstock travel (mm) 1015
Distance from spindle nose to table surface (mm) 260-1210
Spindle taper(MT) 4
Spindle speed steps 16
Spindle speeds range(r.p.m) 32-2500
spindle travel (mm) 270
Spinde feeding steps 8
Spindle feeding range(mm/r) 0.10-1.25
Rocker vertical moving speed(mm/min) 1.27
Rocker rotary angle ±180°
Maximum resistance to the spindle(N) 12250
Main motor power(kw) 2.2
Movements motor power (kw) 0.75
N.W/G.W(Kg) 2200
Dimension machine(L×W×H) (mm) 2053 x820x2483

Contact Us:

Andy Wang
TENGZHOU HOTON MACHINERY CO.,LTD
Tel:0086 632 5633796
MP:0086 13506328892
hotonmachinery.en.made-in-china.com
Company Profile:

Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.
The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale.
Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers.
Quality first,Constantly perfecting skills.
