Adavanced High Presicion Robot CNC Lathe Machine Inclined Guide Rails

Product Description

Precision, stable and efficient MT36P models, is a cost-effective products to achieve precision turning. 1. Using Taiwan, Japan, Western Europe imported parts as the main configuration, through strict installation and testing process, can achieve U-level precision turning.
2. Adopting the HT300 high quality cast iron one-piece rigid structure, the precision turning mat is fixed by secondary tempering optimization.
3. X-axis long stroke is more suitable for multi-station gang tools + servo turret + power head integrated with the integration, so that processing more efficient.

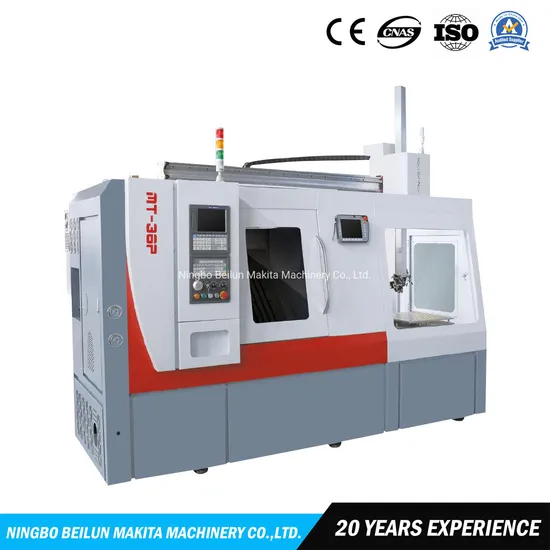

Product show
Specification

Item	Parameter	MT-36P
Capacity	Max.swing over bed	400mm
	Max.swing over slide	160mm
	Max.workpiece length	245mm
	Bar diameter	35mm
Spindle	Maximum spindle speed	4500r/min
	Dia of spindle bore	49mm
	Spindle taper	MT5
Rapid traverse	X-axis rapid traverse	30m/min
	Z-axis rapid traverse	30m/min
Axis stroke	X-axis limit travel	380mm
	Z-axis limit travel	320mm
Tool	Tool post/turret	gang tool post
	Shank size	20*20mm
Others	Min setting unit	X axis:0.001mm Z axis:0.001mm
	Spindle motor power	3.7KW
	Dimension(L*W*H)	1900*1480*1680mm
	Weight/aprroximate weight	2600KG

Our Company
Makita Machinery Co., Ltd. was founded in the south wing of the Yangtze River Delta, Ningbo Beilun Development Zone, and the creation of "Makita" brand. Enterprise has a group of experts from Japan and China after the reform and develop a deeper knowledge of the machine honed technical team, in the tradition of Japanese machine tool manufacturer century technology, innovation, doing fine and stronger.
Follow the national Thirty-five year plan for higher goals China's equipment manufacturing industry proposed by the company in due course of potential, have developed products are gang tools series, turret series slant bed precision CNC lathe ,with C-axis,Y-axis function turning centers; stand-alone automated robotic combination of CNC lathes; and for customers tailored, flexible production line network intelligence.
Enterprise integration " One Belt and One Road " strategy into a strong force, through 2014 to 2015 two years of efforts the company successfully design and production or transformation of a number of intelligent, unmanned production lines for many Japanese-funded enterprises. Enterprises regard quality as the life ,carefully crafted ,strictly internal control have passed the ISO9001 quality management system certification, CE certification machinery products, we have obtained total of 100 patents including multiple invention patents.
Thanks to long-term and friendly cooperation enthusiasm throughout the new and old customers at domestic and overseas in recent years, the company's business booming, the products sold throughout the country and exported to Europe, America, Southeast Asia, the Middle East and other countries, to obtain the customer's praise.
Packing & Delivery
Packing Details : International Heat Treatment Standard Export Wooden Package.
workbench and the guide surface rust-proof oil daub, and oil film paper cover.
Delivery Details : 15-60 days after PI confirmed and deposite received.
Quanlity& Honor
Exhibition photos
FAQ Q: Are you trading company or manufacturer ?
A: We are factory. Beilun makita machinery is a brother manufacture as shunfa,haishun and haihao company.In fact,we do export from 2008 under haishun company, our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.

Q: How long is your delivery time?
A: Generally it is 15-60 days ,it is according to different machine model and different configuration and order quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. Also we would like to do LC at sight.

Q: Where is your factory located ? How can I visit there ?
A: We are located in Ningbo City. Which is only 2 hours' away from Shanghai by train.
Also you can fly to Ningbo Airport, it is only 1 hour and we will pick up you.
