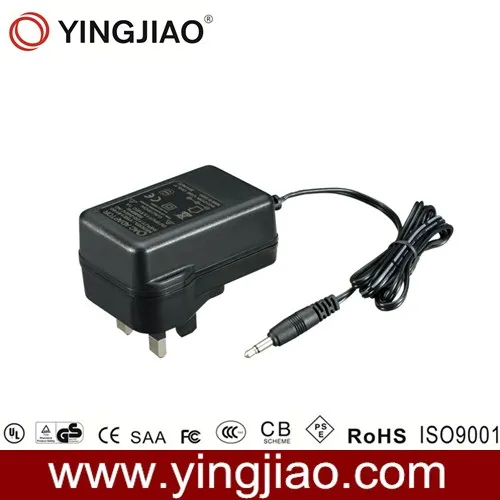

16W Switching Type Battery Chargers with RoHS

Product Description

We are a professional manufacturer of wall mount power adaptor/plug-in adaptor, AC adaptor, AC/DC power adaptor, and desktop switching power adaptor/SMPS, etc. For over 10 years.
Model: YS16 series
Universal Input: 100-240V AC 50/60Hz
Rated Power: 19W max.
Sample Output Specifications:
Model / Output Load Voltage (V) / Max. Load Current (A)
YS16-XX360 / 36 / 0.50
YS16-XX280 / 28 / 0.60
YS16-XX240 / 24 / 0.75
YS16-XX180 / 18 / 1.00
YS16-XX150 / 15 / 1.25
YS16-XX138 / 13.8 / 1.15
YS16-XX120 / 12 / 1.60
YS16-XX090 / 9 / 2.00
YS16-XX075 / 7.5 / 2.00
YS16-XX060 / 6 / 3.00
YS16-XX050 / 5 / 3.00
YS16-XX045 / 4.5 / 3.00
XX-represent rated output power
Features:
Safety: UL / CUL / TUV / GS / CE/ CCC compliance
RoHS Compliance
High efficiency & low power consumption
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
Mechanical:
Dimensions: 70mm (L)*45mm (W) *31mm (H)
N. W.: 90g
AC Plug: European two round pins or American two flat pins
Output plug: Optional

Output Load Voltage (V)	4.5-36V
Max. Load Current (A)	0.50-3.00A
