100 Degree Industrial Wss 411 Bimetal Thermometer for HVAC
Basic Info.
Model NO.
WSS Bimetallic Thermometer
Standard
Celsius/Fahrenheit
Accuracy
1.0%
Usage
Industrial, Household
Display
Pointer
Material
Bimetallic
Hygrometer Type
Dry and Wet Bulb Thermometer
Temp. Measuring Range
0-500 Deg.C
Nominal Diameter of Dial
60mm, 100mm, 150mm
Precision Grade
1.0%, 1.5%
Thermal Response Time
40s
Length of Temperature Sensing Tube
75-2500mm
Diameter of Temperature Sensing Tube
6mm, 10mm, 12mm
Material of Temperature Sensing Tube
Ss 304, SS316, Ss 316L, Stainless Steel Lined with
Protection
IP 55
Ambient Temperature
-40 - 85 Deg.C
Relative Humidity
5-100%Rh
Position Characteristics
Axial Type, Radial Type, Universal Type
Thread Size
M16*1.5, M20*1.5, M27*2, G / NPT 1/2", ...
Keywords
Bimetal Thermometer
Model
Wss Bimetallic Thermometer
Oil Filled
Oil Filled, No Liquids Filled
Transport Package
2kg
Specification
20*15*15cm
Trademark
Siko Instruments
Origin
China
HS Code
9025191010
Production Capacity
999 Units / Weeks
Packaging & Delivery
Package Size
20.00cm * 15.00cm * 15.00cm
Package Gross Weight
2.000kg
Product Description

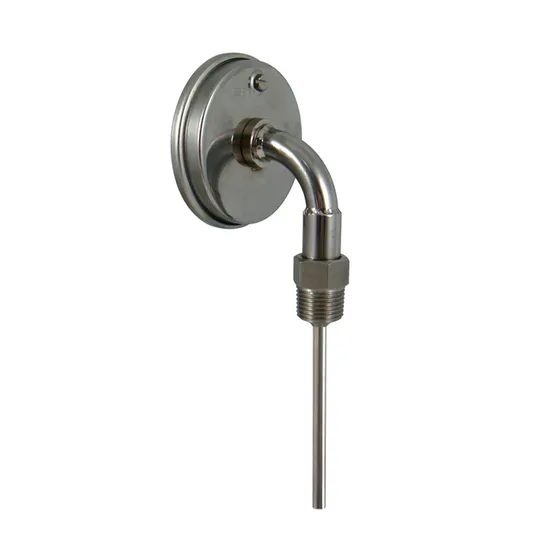

100 Degree Industrial WSS 411 Bimetal Thermometer For HVAC Product Description The Bimetallic Thermometer is made of a metal sheet which is made into a ring and bend shape.With one end is heated and expands, it will lead to the rotation of the pointer and the working instrument will show the temperature value corresponding to the thermal electric potential.Bimetallic Thermometer is a kind of field testing instrument to measuring low and medium temperature. It can directly measure the temperature of the liquid, vapour and gas within -80ºC-+500ºC in a variety of production processes such as machinery, textile, chemical, petroleum, electric power, ships, food, etc.
Features
| 01. | Local Display With Clear And Multi-Direction Indication. |
| 02. | It's Safe And Reliable With Long Service Life. |
| 03. | Linear Scale With High Sensitivity. |
| 04. | Excellent Shock Resistance Performance. |
| 05. | Variety Of Installation Forms Optional |
Measuring Range & Installation
Selection Table
Electrical Connection
Certifications
