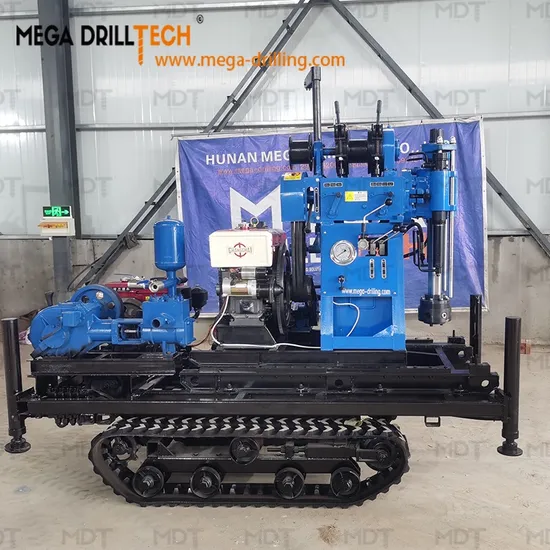

Mdt-150c Crawler Type Portable Water Well Soil Nailing Borehole Drilling Rig with Diesel Engine Easy for Transportation and Mobilization Mud Pump Integrated
| US$12,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
MDT-150C
Certification
ISO 9001:2000
Condition
New
Drill Hole Diameter
<100mm
Drill Hole Depth
100-150m
Bit Type
Diamond Bit
Drilling Way
Rotary
Type
Portable
Rotation Speed
60 200 400 610 1100 R/Min
Max. Torque
1800n*M
Lifting Capacity
24,000n
Rated Power (12h)
11kw
Transport Package
Naked Packing
Specification
2600*1100*1820 mm
Trademark
MEGA DRILLTECH
Origin
China
HS Code
8430691900
Production Capacity
30units/Month
Product Description
MDT-150C Spindle Crawler type Drilling Rig Portable Water Well Drilling RigPortable Well Drilling Machine And Boring Machine For Sale Phillipine, Soil Investigation,Mining Purpose
MDT-150C drilling rig is a kind of multi-use portable engineering drill. It is mostly used for the engineering geological exploration and pile examination in railway,bridge,traffic,hydroelectricity or industrial and civil architecture. It can also used in minor diameter foundation piles drilling.
Technical Specification:
| Basic Parameters | |
| Drilling depth | 150m |
| Drilling diameter | 300mm |
| Drill pipe diameter | 42mm |
| Gross weight of drilling machine(engine not included) | 500kg |
| Dimension (length ×width × height) | 2600*1100*1820 mm |
| Revolving Plate | |
| Rotate speed | 60 200 400 610 1100 r/min |
| Maximum torque | 1800N*m |
| Driving travel | 450mm |
| Maximum Cylinder driving force | 20,000N |
| Maximum Cylinder lifting force | 30,000N |
| Lifter | |
| Lifting capacity | 24,000N |
| Bobbin line speed (2 layers) | 0.20 0.72 1.26 2.8 m/s |
| Bobbin diameter | 140mm |
| Rope diameter | 11mm |
| Rope capacity | 26m |
| Drilling rig | |
| Type | Steel pipe quadripod |
| Height | 6m |
| Drive motor | |
| Type | Changzhou ZS1100 diesel engine |
| Rated power | 11.03KW |
| Tare weighr | 150kg |
