China Leading Sheet Metal Plate Hydraulic Shearing Machine QC12y-10X2500 Supplier with Large Experience

Product Description

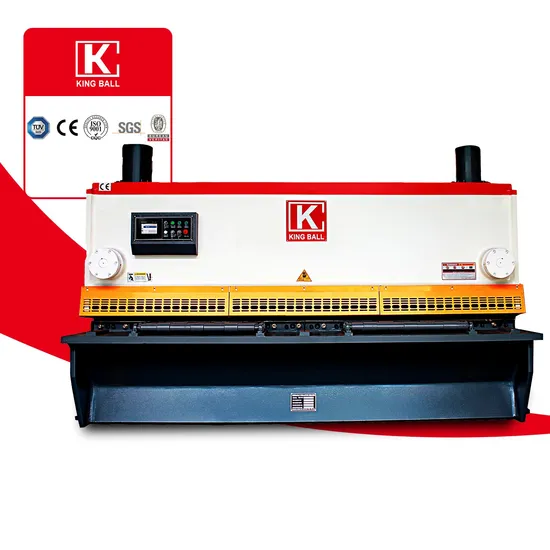

Hydraulic Swing beam Shearing Machine
Model: QC12Y-10X2500
Main functions and features
1. The machine employs hydraulically-driven swing beam, the steel plate welded structure,
and accumulator -based pullback cylinder with steady and reliable operation.
2. Indicator-based adjustment of gap of blade is convenient and fast.
3. The machine is equipped with lighting alignment device, and uses stepless control for
the stroke of up tool carrier.
4. The machine uses protection fence for safe operation.
5. Digital display device for size of back gauge and shearing times available.
Technical Parameters

NO.	Item	Parameter		Unit
1	Cutting thickness	10		mm
2	Cutting Length	2500		mm
3	Backgauge Range	20-600		mm
4	Material Strength	≤450		N/mm²
5	Shear Angle	2		°
6	Strokes	≥10		(min-1 )
7	Main motor power	15		KW
		L	3180	mm
8	Overall dimension	W	1800	mm
		H	1700	mm
9	Machine weight	7500		kg

Detailed Pictures

E21S Controller
Backgauge and block control Control for general AC motors, frequency inverter Intelligent positioning Stock counter Holding/decompression time setting Program memory of up to 40 programs Up to 25 steps per program One side positioning Retract function One key backup/restore of parameters mm/inch Chinese /English
Main configuration

Name	Producer
CNC controller	E21S Estun China Brand
Main motor	Siemens Germany brand
Electrical components	Schneider France brand
Gear pump	Sunny USA brand
Seal ring	NOK Japan brand
Hydraulic system	Boschrexroth Germany brand
Ball screw	HIWIN Taiwan brand
Tubing connector	EMB Germany Brand
Variable frequency drive	Shihlin Taiwan Brand

Standard Accessories: Anchor bolt Hex nut Seal ring Washer Grease gun Allen wrench Feeler gauge Foot switch Front support arms Electrical box key, control panel key Operation manuals
Package and Shippment
Shearing machine is usually packaged in plastic film,if you need other packaging,we can also meet you.
Our Factory-Nanjing Jinqiu CNC Machine Tool Co., Ltd
has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes, Shearing Machines,Rolling Machines,Press Machine,Ironworkers,Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball ,since it was established in 2003. Kingball is a true expert of machine- manufacturing based on more than 15 years experience.
Our Company has got the certification of ISO9001,SGS ,CE ,TUV and BV have been exported to more than 60 countries including UK, USA, Italy, Spain, Ireland, India, Thailand, Malaysia, South Africa, and so on.
We have 28,000 square meters workshop, advanced production equipment,220 experienced staff, and strictly effective quality assurance system. Kingball selects best material and parts for the machines and the most important is Kingball manufactures most of the parts by itself for better to control the quality. Therefore Kingball brand products win the reputation of practical, reliable and durable.
Nowadays our company is developing the global market, We are currently looking for all agents and powerful cooperation globally to sell our products worldwide. We are glad to try our best to supply Free technical support and related information all of the China Machine. Any advise you have , please do not hesitate to contact with us for your requirement, thank you!
Our Customers
Sound and Reliable After-sale Service The shearing machine warranty period is 2 years and shear blades warranty period is 1 year, will run since bill of lading date,if the accessories appear damaged during the warranty period, except for damage caused by improper human handling, we can replace them for the buyer for free. For Installation & Commissioning engineer go oversea, the customer needs pay for visa apply charges, a round-trip ticket for plane,100USD per day for the engineer's business travel allowance from he takes the plane until he takes plane back, and cover the local accommodations. We can also provide the video technical support when you receive the machine for your reference. All mails will be replied in the first time within 12 hours,all social software message will be dealt with in real time. Regularly update the production of the machine to the customer through photos and videos, follow up the order continuously, and seek the feedback from the customers.
