PE Film Washing Line / PE Film Recycling Machine

Product Description

Product Description

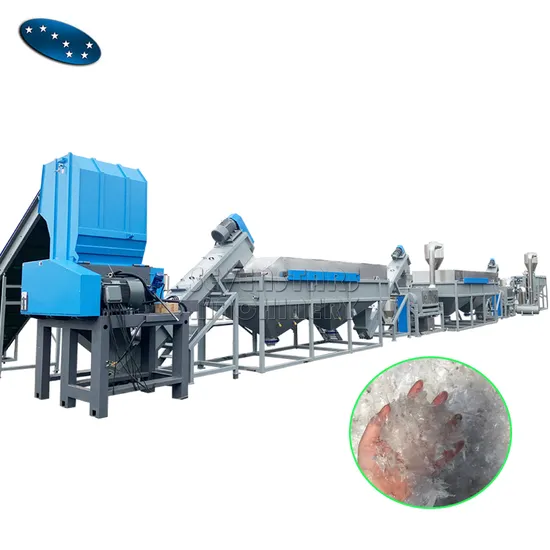

PE Film Washing Line / PE Film Recycling Machine
New type waste film washing machine / PE film washing machine with high out and low consumption
Features:
1) Environmentally friendly composite plastic-cellulose fiber materials
2) The knievs can be shaped using carpentry and construction tools
3) Applications: Indoor decoration film, packing film, pallet making production, agricultural film etc.
4) Capacity: 300-1000kg/h
5) Use: Clean PE PP film, dirty PP PE film, PP PE film with oil.
Specialized design for customer waste film washing machine
Consideration for our customer we will design different PP PE agricultural film washing line for our customer:
1)We provide different capacity for our customer: 300-1000kg/h.
2)According to your material, you may choose different device or you may choose full automatic line or semi-automatic line.
3)We providing turn-key project for our customer. Design-product-installment-testing.
4)Based on your workshop condition, Our design always matched to your workshop mostly. Product Parameters

WASTE PE. PP FILM CRUSHING WASHING LINE(OUTPUT: 500-700kg/hr)
NO	component items	POWE(kw)	L*W*H(mm)	WEIGHT (kg)	QTY
1	Belt conveyor	1.5	6000*900*600(3200)	600	1
2	PS-1000 Crusher with water	45	1650*1660*2800(2800+920)	1700	1
3	Screw Loader 1(Φ 500)	11	3500*800*1300	700	1
4	Single Screw friction washing	11+0.75	5300*1300*2150	2200	1
5	Screw Loader 2(Φ 500)	11	3500*800*1300	700	1
6	Floating Tank	2.2+1.1+1.5	6000*1200*2150	2300	1
7	Screw Loader 3(Φ 500)	11	3500*800*1300	700	1
8	Horizontal dryer	30	2300*1750*1900	2200	1
9	Silo		1500*900*3400	130	1
10	electrical control system		800*500*2000	520	1
			1000*550*1150	120	1
1, length of production line: 27 m; 2, installed power: 128 kw; 3, equipment noise: 1 meter≤ 80dB; 5 meters≤ 75dB; 4, water consumption for recyling 1T waste material: 1m³ (circulating water); 5, oil burning boiler steam volume: 300kg/h ; steam pressure 0.7MPa; vapor temperature: 170° C; average oil consumption per hour: 15-25L;

Detailed Photos
Crusher machine

Function: 1.Crushing the film/bags into small scraps, can also choose shredder instead.
2.Crushing with water, the bearing with water cooling design.
3.The material of blade is SKD-11.
Floating washing tank

Function: 1.Washing the dirty from the film or bags material by water.
2.Floating washing tank with working operation table which is easy for future operation on the machine.
3.The material is stainless steel 304.
High speed friction washer

Function: 1.This machine will use high speed centrifugal to wash and send the film scraps to next step.
2.The rotary speed is 1800rpm.
3.This machine with water spray nozzle from the top.
