Small Gang Tool Drilling Milling Machine Multi Functional CNC Lathe

Product Description

Product Description

Small Gang Tool Drilling Milling Machine Multi Functional CNC Lathe

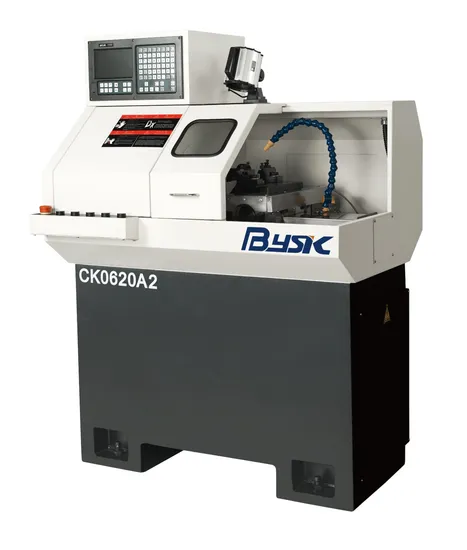

-CK620A2 is small high precision gang type cnc lathe
Features:
1. CK0620A2 has the characteristics of simple practical,easily operate, high accuracy processing.
2. Its can achieve the processing of complex parts, such as straight line,taper,arc and thread, especially suitable for batch production and processing of complex parts.
3. Equipped with center rest,can process slender shaft type workpieces, convenient as sliding headstock lathe. The functions of CNC system is integrity, easily operate.
4. Equipped with automatic feeder, achieve automatic production.
Detailed Photos
*The height of tool holder can be adjustable, convenient for turning.
*Configurated with automatic feeder, Widely apply to the production of automatic production line.
*Reasonable layout, compact apperance and cover little area.

*Adding a center frame can process slender shafts workpieces, work as sliding headstock lathe,The chuck of center frame can be micro adjusted.
*Economical, easy to operate

*Suitable for processing instruments,meterselectron-
ic connectors,optics, auto parts,hardware and other
precision parts.
*High cost performance and perfect after-sales
service.

Some Suggestions
--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you professional recommendation.
Product Parameters
CK620A2 Small High Precision Gang Type CNC Lathe
Technical Parameter

Power	Rated Voltage	Three-phase AC 380V
	Rated Frequency	50HZ
	Total Input Power	3.2kW
CNC system	BYSK	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Max Program Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	15000mm/min
	Z Axis Rapid Feed Speed	18000mm/min
Main Spindle	Max Bar Diamater	Φ20mm
	Main Spindle Through-hole Diameter	Φ21mm
	Max Rotate Diameter	Φ200mm
	Main Spindle Center Height from Ground	1000mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2.2kW
Travel	X Axis Travel	300mm(Diameter)
	Z Axis Travel	200mm
	X Axis Servo Motor Power	0.4kW
	Z Axis Servo Motor Power	0.4kW
	Guide Rail Form	Linear Guide Rail

Gang Tooling System	T notch	6pcs
	10*10square+16*16square	2pcs+2pcs
	Φ16 Hole Cutter	2pcs
Cooling System	Cutting Oil Motor Power	0.12kW
	Cooling Box Capacity	30L
Lubrication System	Motor Power	35W
	Capacity	2L
Pneumatic System	Input Compressed Air Pressure	0.4--0.6Mpa
Lathe Size	Length*Width*Height	1120*990*1810
	Lathe Weight	700kg

CK0620A2 Configurations
Item	Specification	Origins
CNC System	YZ190	Baoyu BYSK
Main Spindle Motor	2.2kW Asynchronous Motor	Dedong
X Axis Motor	0.4kW Absolute Value Servo Motor	Inovance/DELTA+Lines
Z Axis Motor	0.4kW Absolute Value Servo Motor	Inovance/DELTA+Lines
X Axis Screw Rod	333*1605	Taiwan Joint Venture
Z Axis Screw Rod	400*2006	Taiwan Joint Venture
X Axis Guide Rail	HGH20	HIWIN/PMI/THK
Z Axis Guide Rail	HGH20	HIWIN/PMI/THK

Company Profile









Packaging & Shipping

FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.
