Cbr Cross Head Double Speed Position Limit Switch for Crane Travelling European Type Hoist Stop

Product Description

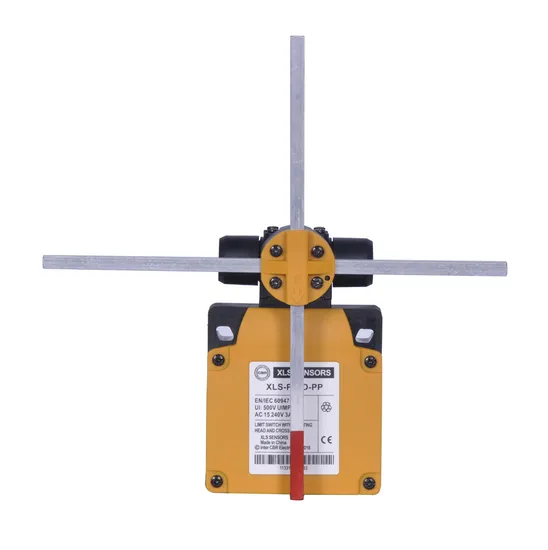

Cross head limit switch XLS-P54D-PP
The CBR new position limit switch SXL-P54D-PP/NP designed for controlling the movement of overhead travelling cranes, hoists and complex machine tools. Sturdy and reliable, it is particularly suitable for use in harsh operating conditions.
This crossed rods limit switch triggers a slowing of the machines before the stop. This smooth braking sensibly reduce the risk of crashing due to sudden halts. They are fitted with 4 microswitches .and It functions both clockwise and counter clockwise.
Features
Designed to guarantee excellent performance in the most challenging operating conditions.
Rods with 4 maintained positions every 90°
4 fixing holes.
Positive opening NC contacts for safety functions.
Mechanical life of switches: 2 million operations.
IP protection degree: IP65 with dedicated cable clamp M20.
Extreme temperature resistance: -40°C to +80°C. Aluminium rods with 6x10 mm section and enclosure and head in self extinguishing thermoplastic material.
All materials and components used are wear resistant and guarantee protection of the unit against water and dust.
Cross rods with 4 maintained positions every 90°, - 2 slow action switches with 1NC+1NC staggered contacts or 2 slow action switches with 1NO+1NC contacts.
