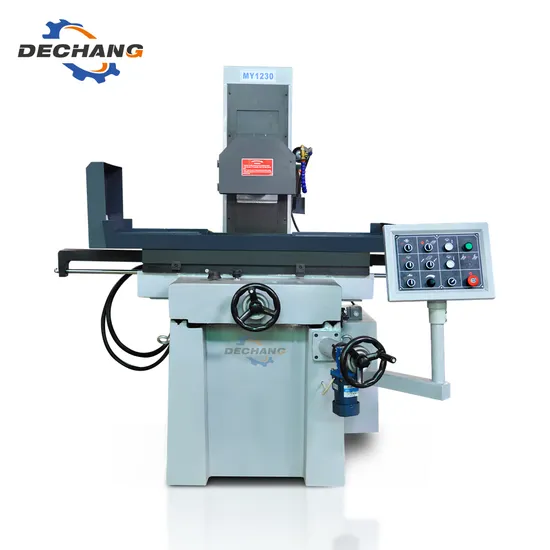

Hydraulic Plane Grinder Machine My1022 My1024 My1230 Automatic Metal Plane Polish Machine

Product Description

Hydraulic Plane Grinder Machine My1022 My1024 My1230 Automatic Metal Plane Polish Machine
Product Description
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Main technical specifications:

Specifications				Units	MY1022	MY1224	MY1230
workbench	Worktable size (L * W)			mm	540×250	600×300	750×300
	Max. travel of table			mm	560×260	630×320	780×320
	Table T slot (slot number x slot width)			mm	1×14	1×14	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)			mm	φ200×20×Φ31.75	Φ300×30×Φ76.2	Φ300×30×Φ76.2
	Distance spindle center line to working table			mm	450	520	520
	Grinding wheel speed		50HZ	r/min	2850	1450	1450
			60HZ	r/min	3360	1680	1680
The amount of feed	Table longitudinal (left and right) speed			m/min	3-20	3-20	3-20
	Table transverse (front and rear) feed handwheel feed		Continuous (stepless)	mm/min	600	600	600
			Intermittent (stepless)	mm/times	0-5	0-6	0-6
			Handwheel per turn	mm	4.0	4.0	4.0
			Handwheel per lattice	mm	0.02	0.02	0.02
	The vertical (up and down) feed handwheel feed		Handwheel per turn	mm	1.25	2.0	2.0
			Handwheel per lattice	mm	0.01	0.01	0.01
Hydraulic system	Hydraulic motor			kw	1.5	360	360
	working pressure			Mpa	3	2.2	2.2
	Fuel tank capacity			L	80	4	4
	Maximum flow rate			L/min	18	100	100
Motor power	Spindle motor			kw	1.5	20	20
	Cooling motor			W	40	2.2	2.2
working accuracy	The process surface of the base level of the parallel degree			mm	300:0.005	40	40
	Surface roughness			μm	Ra0.32	120	120
Machine weight		Net weight		kg	950	300:0.005	300:0.005
		Gross weight		kg	1050	Ra0.32	Ra0.32
External size (L * w * h)				mm	1680x1220x1720	1400	1400
Packing size (L * w * h)				mm	1730x1290x1940	1530	1530

Detailed Photos
Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
