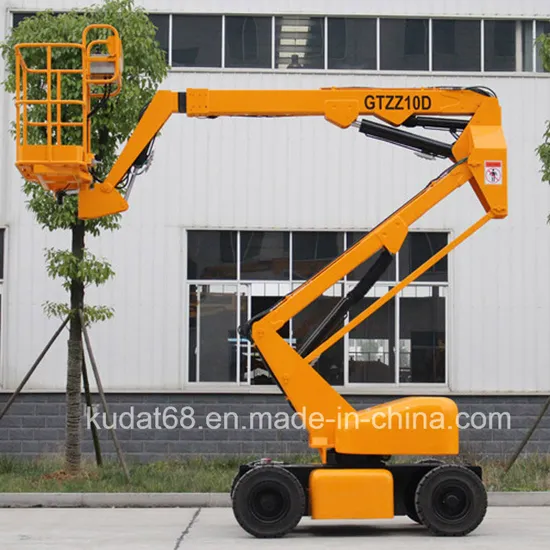

10m Electric Powered Articulated Hydraulic Boom Lift Gtzz10d
| US$30,000.00-35,800.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
GTZZ10D
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Aerial Work Platform
Feature
Aerial Work Platform
Certification
CE, ISO 9001
Structure
Aerial Work Platform
Installation
Aerial Work Platform
Type of Work
Aerial Work Platform
Working Height
12m
Lift Capacity
Kgs
Hydraulic Oil Tank Capacity
70L
Travel Speed
4km/H
Grade Ability
20%
Transport Package
Bulk
Specification
SGS CE
Trademark
KUDAT
Origin
China
HS Code
8428909090
Production Capacity
100PCS/Month
Product Description
Description:Our boom lift can be divided into two types, telescopic type and articulating type. Our telescopic boom lift is powered by an internal combustion engine, 4*4 driving mode and 4*2 driving mode are available for you to choose. This type of aerial working platform with a wide operation range, it could be used to handle aerial operation for a variety of rough terrain. Currently it is mainly applied for building construction, bridge building, ship building, outdoor advertisement facility installation, as well as construction of airport, mine, port and more.
Features:
1. It is a self-propelled articulated boom lift.
2. It can realize the lifting upwards, onwards, etc.
3. The two-wheel and four-wheel driving mode, diesel, electric motor, double power sources, etc. are optional.
4. The working height ranges from 12m to 26m.
5. The horizontal reach of the self-propelled articulated boom lift ranges from 7m to 13.3m.
| Item | GTZZ10D |
| Working height maximum | 11.75m |
| Platform height maximum | 10.05m |
| Platform Length | 0.76m |
| Platform Width | 1.53m |
| Height-stowed | 1.95m |
| Length-stowed | 5.33m |
| Width | 1.5m |
| Wheel Base | 1.65m |
| Ground clearance center | 200mm |
| Horizontal reach maximum | 6.5m |
| Lift capacity | 200kg |
| Turning radius (outside) | 3.8m |
| Turntable Swing | 360°continuous |
| Speed of Turntable Swing | 0~1.5rpm |
| Leveling mode | Automatic |
| Platform rotation | 180° |
| Tire | 590*195 rubber tire |
| Hydraulic oil tank capacity | 70L |
| Weight | 5300kg |
| Travel speed(stowed) | 4km/h |
| Travel speed(raised or extend ) | 0.8km/h |
| Grade ability | 20% |
| Drive and turn mode | 4×2×2 |
| Battery | 6×8/210Ah TROJAN |
