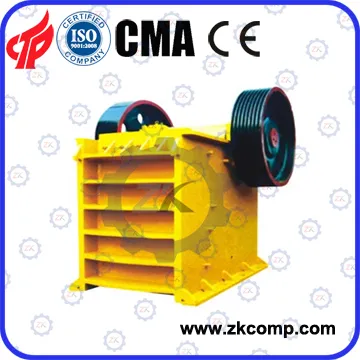

Small Stone Crusher Machine/Jaw Type Crusher

Product Description

Small Stone Crusher Machine/Jaw Type Crusher
HENAN ZHENGZHOU MINING MACHINERY CO., LTD was founded in 1956, after more than half a century of development, has now become a domestic first-class modern machinery manufacturing enterprises. Product marketing at home and abroad.
Application:
Our Jaw Crusher is a trusted and reliable brand for its high quality and good manufacturing. It specializes in producing jaw crusher which is widely applied to crush high hardness, MID hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.
Jaw Crusher series have many advantages, such as big reduction ratio, even granularity, simple structure, reliable working condition, convenient repair and economic operation, which are widely used for mine, smelting, building material, road, railway, irrigation works, chemical and materials with compression strength no more than 320 Mpa.
The structure of Jaw Crusher
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs
Jaw crusher Features and Benefits:
1) High capacity
2) High reliability
3) Adjustable for easy wear parts
4) over-loading protection
5) simple structure and easy to operate
6) Long service time
7) Easy replacement of wear and spare parts
8) Less costly and Easy to install
9) Wide range of choices
Jaw Crusher Note:
The aircraft should be checked before use each part of fasteners, particularly bolts lubricated parts and ministries, all lubricated parts need to maintain sufficient oil, will be fastening bolts loose, and then clean up broken cavity residue, and then start production of in normal work, note that even under the material may not be under a foot, for a long time without adding, too much can cause mechanical blockage. Jaw movement and static jaw plates, side panels, roof of wearing parts, taking care to maintain!
Company Name: Henan Zhengzhou Mining Machinery Co., Ltd.
Official Website: http://hnzkjq.en.made-in-china.com
24-hour Free Sales Consulting Phone: 86-18937185591.
Company Address: Qiaolou caizhai industrial estate, Xingyang city, Henan Province
Please pay attention to the company's other products:
Price of rotary kiln: http://hnzkjq.en.made-in-china.com/calcining.html
Rotary Kiln:http://hnzkjq.en.made-in-china.com/calcining.html
Preheater: http://hnzkjq.en.made-in-china.com/calcining/8.html
Cement Mill: http://hnzkjq.en.made-in-china.com/grinding/17.html
Rotary Dryer: http://hnzkjq.en.made-in-china.com/calcining/116.html
Raw Mill: http://hnzkjq.en.made-in-china.com/grinding/16.html
Trommel Screen:http://hnzkjq.en.made-in-china.com/separating/137.html
Rotary cooler:http://hnzkjq.en.made-in-china.com/calcining/6.html

Mode	Size of Feed Opening ( mm)	Max Feed Size ( mm )	Discharge Range Opening (mm )	Capacity(m 3 /h)	Motor Power(Kw)	Weight(t)
PE-250× 400	250× 400	210	20-60	3-13	15	2.8
PE-400× 600	400× 600	340	40-100	10-35	30	6.5
PE-500× 750	500× 750	425	50-100	25-60	55	10.6
PE-600× 900	600× 900	500	65-180	30-85	55-75	15.5
PE-750× 1060	750× 1060	630	80-180	72-150	90-110	28
PE-800× 1060	800× 1060	680	100-200	85-143	90-110	30
PE-870× 1060	870× 1060	750	170-270	145-235	90-110	30.5
PE-900× 1060	900× 1060	780	200-290	170-250	90-110	31
PE-900× 1200	900× 1200	780	95-255	100-240	110-132	49
PE-1000× 1200	1000× 1200	850	195-280	190-275	110-132	51
PE-1200× 1500	1200× 1500	1020	150-300	250-500	160	100.9

FAQ:
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: What should I take care when using the machine?
A: Keep the machine away from thinner and other chemical liquid.
Q: How to maintain the machine?
A: Check the connection part and clean the screen frame regularly.
Q: How can I pay my order?
A: We accept T/T, Western Union, ****** Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Packaging Detail :
The main machinery is in nude packing and spare parts in Wooden or steel box standard export packing, suitable for long distance delivery.
