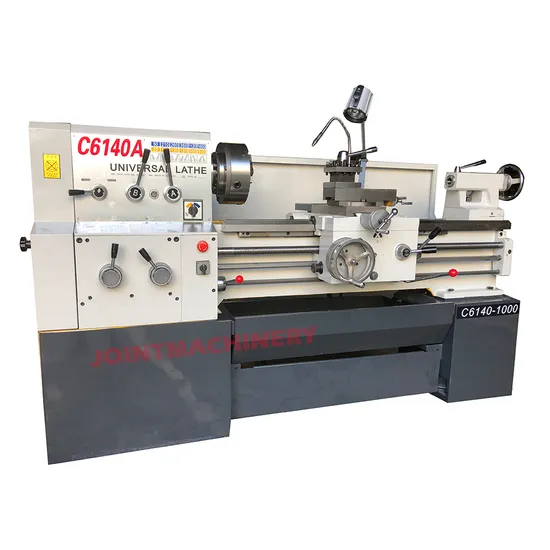

Metal Lathe Machine for Sale Metal Turning Lathe Tool Horizontal Manual Lathe Machine

Product Description

√ Experience unparalleled durability and precision with our machine guide way, boasting a hardness exceeding HRC52°. Crafted using a high-precision CNC guide way grinding machine, this ensures exceptional longevity for the guide way and superior accuracy in body machining.
√ Machining excellence is guaranteed with our lathe head box, feed box, and sliding box, all meticulously crafted using CNC machine center technology. This precision machining ensures the highest levels of accuracy for each box.
√ Enjoy the benefits of precision-engineered transmission gears, crafted using CNC gear grinding techniques. Each gear undergoes rigorous noise testing to ensure minimal gear noise, offering a quiet and smooth operation.
1. Quenched Guideway
Our quenched guide rail is designed for superior performance, offering high hardness and exceptional wear resistance for prolonged use.
2. Tool Post
Equipped as standard with a 4-position tool post, this configuration allows for optimum versatility. For enhanced efficiency, a quick change tool post is available as an optional upgrade.
3. Three-Jaw Chuck
Our standard includes a 3-jaw manual chuck, with the option to upgrade to a 4-jaw chuck for additional versatility based on your needs.
4. Tailstock
Comes standard with a manual tailstock, making it particularly suitable for handling shaft bar workpieces with ease.
5. Working Light
The machine is equipped with a working light, facilitating ease of operation and enhancing visibility during use.
Metal Lathe Machine for Sale Metal Turning Lathe Tool Horizontal Manual Lathe Machine

Model			C6140D/1500
Max swing over bed		mm	400
Max work piece length		mm	1500
Bed rail width		mm	320
Max turning diameter of work piece on tool holder		mm	240
Maximum longitudinal travel of tool rest		mm	630, 880, 1380
Maximum transverse travel of tool rest		mm	220
Bar diameter		mm	45
Maximum turning diameter of workpiece in saddle groove		mm	580
Valid length of gap		mm	200
Spindle center height		mm	202
Spindle head connection			C6
Through hole diameter of spindle		mm	46
Taper of spindle inner hole			MT6
Spindle rotation speed		r/min	25-1600
Taper of inner hole of top sleeve			MT4
Maximum movement in tip sleeve		mm	130
Maximum lateral movement		mm	±10
Thread	Inch system		80-33/4N/1"
	Metric system		0.45-20mm/r
	Module		0.25-10mm
	Diameter pitch		160-31/2DP
Motor specification			YD132M-8/4-B5 3-4.5KW
Belt specification			4-A-1900mm/4-A-2000mm
Dimension (L*W*H)	750mm	mm	1950*950*1250
	1000mm	mm	2200*950*1250
	1500mm	mm	2700*950*1250
Nei weight	750mm	kg	1400
	1000mm	kg	1500
	1500mm	kg	1600

Shenzhen Joint Machinery Co., Ltd. stands as a pinnacle of quality and innovation in the manufacturing and export of CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Dedicated to excellence, we ensure our machines meet the highest industry benchmarks, synthesizing cutting-edge Taiwanese and German core technologies with advanced production methodologies. Our machines are celebrated for their superior precision, stability, and reliability, adept at meeting complex machining challenges. Exporting globally, we have earned a stellar reputation and popularity among our international clients. With a robust market footprint spanning Asia, Europe, South America, North America, and beyond, we pride ourselves on forging enduring partnerships and generating substantial business value with our clients.
