FDA Grade Micron Polypropylene Polyester Felt PP PE Filter Bag Filter Sock Filter Sleeve

Product Description

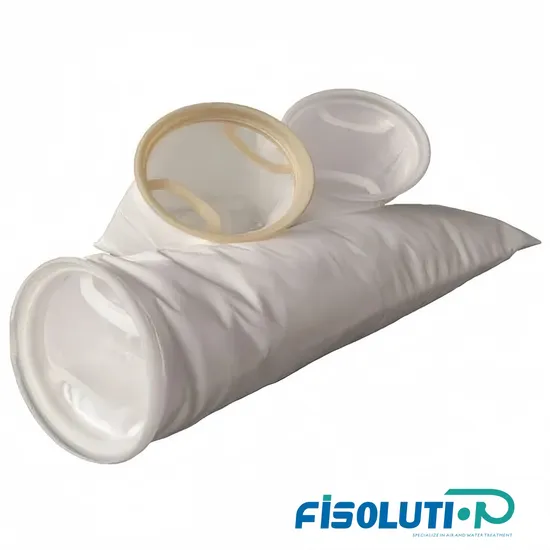

Liquid Filter bag
Company Profile
When it comes to felt filter bags, Our years of experience give us an advantage over our competitors, and our felt filter bags show it. Our felt bags are designed to withstand higher solid loading, and are suitable for applications using vessel or open filtration systems.
We will maintain our status as the industry leader in all phases of the filter business. Our integrated technology, control over our manufacturing and quality leads to consistent performance. With our filter bags, you can count on a quality product every time.
We start with the finest material possible. We make its own fiber to produce the felt material used in our felt filter bags in house, guaranteeing the highest quality. Our Extended Life filter bag provides superior filtration of all sized particles, as well as up to twice the dirt holding capacity of a standard filter bag.
Product Description
Filter Media:
Felt, high temperature
Felt, nylon
Felt, polyester
Felt, polypropylene
Felt, PTFE
Maximum Operating Temperature
Polypropylene: 200-220° F (93-104° C)
Polyester: 275-325° F (135-162° C)
Nylon: 275-300° F (135-149° C)
High Temperature: 400-450° F (204-232° C)
PTFE: 450-500° F (232-260° C)
Micron Rating
Polypropylene: 1, 3, 5, 10, 25, 50, 100
Polyester: 1, 3, 5, 10, 25, 50, 75, 100, 200
Nylon: 5, 10, 25, 50, 100
High Temperature: 5, 10, 25, 50, 100, 200
PTFE: 1, 5, 10, 25
Sizes
1: 7" x 16" (17.78 cm x 40.65 cm)
2: 7" x 32" (17.78 cm x 81.28 cm)
3: 4" x 8.25" (10.16 cm x 20.96 cm)
4: 4" x 14" (10.16 cm x 35.56 cm)
5*: 6 7/8" x 34" (17.46 cm x 86.36 cm)
6*: 6 7/8" x 16" 1/2" (17.46 cm x 41.91 cm)
7: 5 1/2" x 16" (13.97 cm x 40.64 cm)
8: 5 1/2" x 22" (13.97 cm x 55.88 cm)
9: 5 1/2" x 33" (13.97 cm x 83.82 cm)
Ring
Polypropylene Plastic ring
Polyester Plastic ring
Nylon Plastic ring
Snap ring metal
Stainless steel snap ring
Commercial steel ring
Commercial plastic ring
Our Advantages
Filter media technology
Our PP/PE Micron Needle Felt provides 10000 square meters/day, and we can supply different advice according to your need.
Filtration Accuracy:1μm-300μm, customized accepted.
Highly Featured in high-grade PP felt, long working life,three-dimensional filtration, in-depth filtration and better filtration efficiency.
PP needle felt's performance vary in singing, calendaring, heat set, coating and etc.
Product Parameters

Item code	Material	Weight	Thickness	Micron	Weave	Type of Fiber	Finishing	Temperature
PP-1-P02S	Polypropylene	550g/m2	2.20mm	1um	non-woven	non-woven	Heat set	90~110

Applation
Life scienceFisolution production methods and facilities areintegrated to include verifiable traceability for life
ChemicalPolymers, Resin and Terpen derivatives,Naphtalenesulfonate, Precipited Silicate,Colours, Pigments, Fertilizers MineralAlumina red mud management, cement, chalk,coal, concentrates & tailings (copper, gold, iron,silver, zinc, etc) gravel, gypsum, kaolin & clay,lithium, rare earths (cobalt, bismuth, uranium,etc.) titanium dioxide and many more
FoodSugar, Cacao, Carrageenan (Algae), Beanprotein, Beer, Juice, Enzyme, Pectin, Starch andgluten, Wine, Rice bran oil, Palm oil, Colza oil
