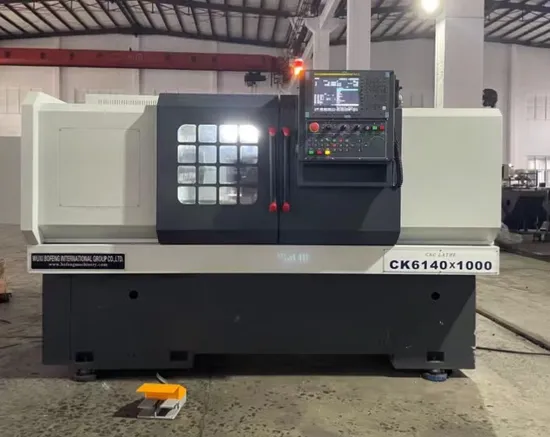

Precision Metal Turning CNC Lathe Machine Ck6140 Horizontal Flat Bed CNC Lathe
| US$12,000.00-18,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CK6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Exporting Wooden Box
Origin
China
HS Code
8458110090
Production Capacity
2000PCS/Year
Product Description
Main Feature:1.Machine body are made of resin sand casting with timing treatment, which guarantees stability of the machine.
2.Horizontal and cross travels are driven by servo motor.
3.High frequency induction hardened guideways bonded with Turcite-B material enable fast response of moving axes,
high accuracy and long lifespan.
4.High precision ball screws and rigid precision bearings.
5.Full enclosed cover or semi-enlocsed cover.
6.GSK, Siemens, FANUC CNC system.
7.With unique auto gear changing mechanism, match with inverter control spindle motor, stepless speed. ( 2 stages) for option.
8.Different electric turret tool changer.
Specification:
| Model | CK6140B | CK6150B | CK6160B | |
| Max. Dia. Over bed (mm) | 400 | 500 | 600 | |
| Max. Swing over tool (mm) | 210 | 310 | 350 | |
| Max. Turning length (mm) | 750/1000/1500/2000 | |||
| Bed width (mm) | 360 | |||
| X axis travel (mm) | 210 | 260 | 310 | |
| Z axis travel (mm) | ||||
| Spindle speed( rpm) | 100-1600 | 100-1600 | 100-1600 | |
| Spindle taper | MT6/1:20(C6/C8) | |||
| Spindle bore dia (mm) | Ф 52/82 | Ф 52/82 | Ф 52/82 | |
| Turret Tool changer | 4, 6 or 8 position | |||
| Tool shank size (mm) | 25*25 | 25*25 | 25*25 | |
| X axis rapid traverse (mm/min) | 4000 | |||
| Z axis rapid traverse (mm/min) | 7000 | |||
| Taper of sleeve | 5# | 5# | 5# | |
| Dia. of sleeve (mm) | 75 | 75 | 75 | |
| Travel of sleeve (mm) | 150 | 150 | 150 | |
| Main motor power (kw) | 5.5 | 5.5/7.5 | 5.5/7.5 | |
| Coolant pump motor power (w) | ||||
| Dimension(mm) | L 750mm | 2150*1300*1700 | 2350*1350*1850 | 2350*1400*1900 |
| Weight (kg) | 1600 | 2000 | 2200 | |
| Dimension(mm) | L 1000mm | 2300*1300*1700 | 2500*1350*1850 | 2500*1400*1900 |
| Weight (kg) | 1700 | 2200 | 2400 | |
| Dimension(mm) | L 1500mm | 2800*1300*1700 | 3000*1350*1850 | 3000*1400*1900 |
| Weight (kg) | 2000 | 2500 | 2700 | |
| Dimension(mm) | L 2000mm | 3400*1300*1700 | 3600*1350*1850 | 3600*1400*1900 |
| Weight (kg) | 2300 | 2800 | 3000 | |
