Second Hand ERW Tube Mill 127 with Garmen Technology for Carbon Steel Pipe Production Line

Product Description

Overview
Basic Info.

Model NO.	127 machine	Application	Industry
Type	Pipe Production Line	Product Name	China Factory Price ERW Pipe & Tube Mill
Usage	making steel pipe	Cutting System	Flying saw
Round Pipe Diameter	Φ63~Φ127mm	Round Pipe Wall Thickness	4.5mm
Square/Rectangle Size	100*100mm	Square/Rectangle Wall Thickness	4.5mm
Origin	China	Export Port	Jiujiang
Advantages		Machine Color	Green
HS Code	85152191	Production Capacity

Product Description

No	Item	Numerical value
1	Round tube diamter	Φ63 ~ Φ127 mm
2	Round tube thickness	4.5 mm
3	Square tube size	100*100mm
4	Square tube thickness	4.5mm
5	Produce speed	10~60 m/min

Technological Process
Configuration

Num	Details include
1	Uncoiler
2	Shear and butt-welder
3	Accumulator
4	Forming welding and sizing machine
5	Solid state high frequency welder machine
6	Speed adjusior
7	Cold cutting saw/hot flying saw
8	Run-out table
9	Roller

Parameters

Num	Name		Parameters
1	Forming welding and sizing machine	Forming machine	Horizontal-roll stands quantity:7 stands
			Vertical-roll stands quantity:6 stands
		Sizing machine	Horizontal-roll stands quantity:7 stands
			Diameter of horizontal shaft:Φ90mm
			Vertical-roll stands quantity:5 stands
		Straightening device	Turk's head type:One set double turk's head type
		Main driven motor	Electric drive motor:The motor may be changed to a domestic motor according to the speed requirements
2	Solid-state High-frequency welder	300KW Solid-state High-frequency welder	Brand (optional):Sanyi Tianxing / Sifang Sanyi
		Speed adjustor	Power:90KW*2sets
3	Flying saw		Flying saw power:560KV/A
4	Roller	Specification	Φ63.5,Φ76.1,Φ85, Φ89,Φ93,Φ101.6,Φ108,Φ114.3

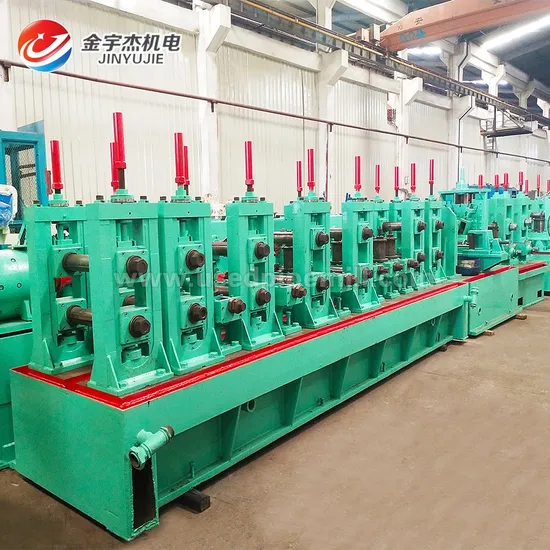

Detailed Photos
Product Parameters

Model	Tube O.D.(mm)	Thickness(mm)	Square & Rectangle(mm)	Thickness(mm)
76 machine	Φ32~Φ89	Max 1~3.5
89 machine	Φ40~Φ102	Max 1~3.5/4	40X40~90X90	Max 1.5~4
114 machine	Φ60~Φ114	Max 1.5~4
127 machine	Φ60/76~Φ127	Max 1~4.5
140 machine	Φ45~Φ140	Max 1~5
165 machine	Φ89~Φ165	Max 2~6
219 machine	Φ114~Φ219	Max 2~8
273 machine	Φ165~Φ273	Max 3~9	80X80~200x200	Max 3~9
325 machine	Φ165~Φ325	Max 3~10
406 machine	Φ219~Φ406	Max 4~12

Company Profile
Foshan Shunde jinyujie mechanical and Electrical Equipment Co., Ltd. (hereinafter referred to as jinyujie mechanical and Electrical Equipment Co., Ltd.): the company was established in 2001, the main business is the acquisition and transfer of second-hand welded pipe units, and one-stop to provide customers with installation, commissioning, maintenance, customization and other services. Focusing on the high frequency welded pipe industry for 30 years, 17 years of high frequency manufacturing and service experience. In the past 17 years, we have provided more than 2000 enterprises with high quality products and one-stop service support. Second hand welded pipe production equipment and accessories, talent and technology war.
A large number of second-hand real source, rapid integration of the entire second-hand welded pipe production line. Installation and commissioning services can be provided at home and abroad to ensure the rapid production of qualified steel pipes. Long term cooperation with a number of welded pipe equipment manufacturers, complete spare parts. Adhering to the development concept of "honesty, pragmatism, creating value for customers", we are committed to providing valuable services for customers.


Packing and Shipment
Our customer and partner
After Sales Service
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
Customized service
1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. 12 Months guarantee and life-long technical support.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
5.24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7.Good after-sale service offered,please get back to us if you got any questions.
Quality Control
Our engineer would test the machine before delivery to ensure the machine running smoothly.
