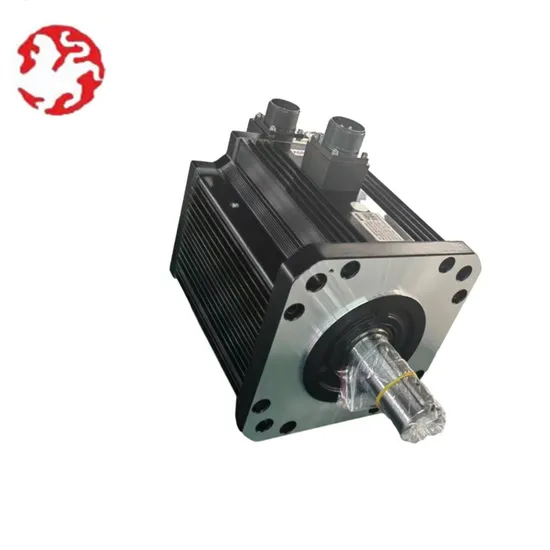

180# 4400W 380V AC Permanent Magnet Synchronous Servo Motor with Brake

Product Description

1.Product tyep
180# 4400W 380V AC Permanent Magnet Synchronous Servo motor with brake;Encoder can be choosed according to your requirements; High-end motor application fields cover industrial robots, AGVs, intelligent factories, CNC, and 3C, among others.
2.OEM&ODM are all acceptable
3.Our advantages: 3.1Having an excellent R&D team, 3.2. RELIABILITY FIRST , QUALITY CONTROL MANAGEMENT FIRST.
3.3.SHORT LEAD TIME (Conventional products about one-week)
3.4 COST-EFFECTIVE (competitive price )
3.5 Certification:ISO9001, CE; and our products meet RoHS requirements.
3.6 With a one-year warranty (under normal use)
4.Product features
4.1. The entire series adopts a 5-pair pole scheme;
4.2. Compared to competitors in the same industry, the product size has a shorter advantage;
4.3. The rotor adopts embedded magnetic steel, without the risk of magnetic steel falling off;
4.4. Encoders can be matched with various types, and the company has its own encoder products for matching use
Compared to peers, it has supporting advantages.
4.5. The appearance of the motor is available in silver and black, with a focus on black.
5.Technical indicators

Rated output power	4400	W
Number of poles	10	P
rated voltage	380	VAC
Rated speed	1500	r/min
Maximum speed	3000	r/min
Rated torque	28.4	N.m
Instantaneous maximum torque	71.6	N.m
Rated Current	15.9	A(rms)
Instantaneous maximum current	43.5	A(rms)
Line back EMF	118	V/krpm
Torque coefficient	1.951	N.m/A
Moment of inertia		Kg.sq.m.10-4
Line resistance	0.37	ohm
Line inductance	8	mH
Brake rated voltage	24V+2.4V	VDC
Brake rated power	25	W
Brake static torque	≥48	N.m
Brake moment of inertia	72.19	Kg.sq.m.10-4
Weight	23.5	Kg
Feedback element	Optional
Temperature sensor	NC

6.Functional features

Working hours	Continuous
Heat resistance	Class F
Body color	Black
Cooling method	Natural cooling
Vibration level	V15
Connection method	Direct connection
Installation method	Flange installation
Excitation method	Permanent magnet
Protection method	Fully enclosed ,self-cooling IP65 (except shaft penetration)
Rotation method	Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft

7.Outside view(unit:mm)
8.Dimensions
9.Model Explanation
10.Servo motor wiring definition
11.Company Profile
12.Development history
13.Motor overview
14.Certificate patent display
15.FAQ
