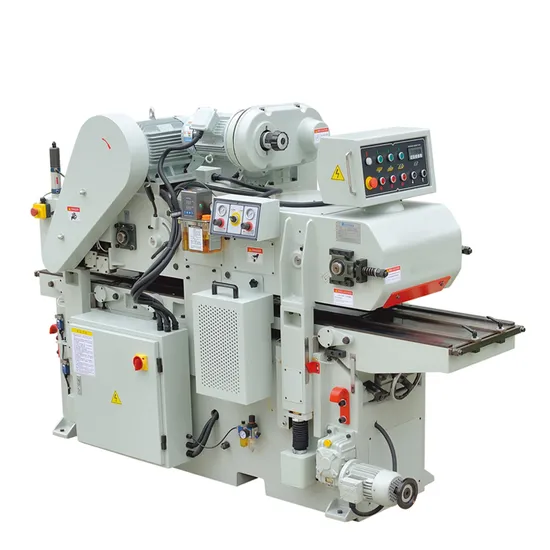

Hicas Electric Automatic Woodworking Thicknesser Double Side Planer Machine for Wood

Product Description

HICAS Electric Double Side Planer Moulder Machine for Wood Product Description
204S design for short material, and with CNC auto thickness measure system.

Model	MB204S
Working width mm	40-405mm
Working thickness	10-170mm
Min. working length mm	100mm
Upper cutter Max. Planning off thickness mm	5mm
Bottom cutter Max. Planning off thickness mm	3mm
Spindle speed	5800RPM
Feeding speed	5.3-20m/min
Spindle diameter	90mm
Top spindle power	7.5kw
Bottom spindle power	4kw
Feeding motor power	2.2kw
Lifting motor power	0.75kw
Total power	14.25kw
Voltage	380v 50hz 3phase
Dust port diameter	2pc 150mm
Machine dimension	2520*920*1780mm
Machine weight	2500kg
Cutter type	Spiral cutter

Detailed Photos
1. Machine frame made from high quality whole casting, machining with special treatment and precision machining, with stable performance, rigidness, good precision.
2. Working table use special high-quality wear-resistant materials, the special treatment, precision grinding and hard chrome-plated, the table is beautiful surface, smooth, good wear resistance.
3. Main spindle use high-strength special steel, with special heat treatment, precision machining and dynamic balancing treatment, with precise assemble and testing, its stable operation, stable performance, durability, good processing accuracy.
4. Main spindle use SKF high precision grade bearings, with precision assembly and high-speed running constant temperature testing, qualified to ensure the spindle performance stable operation, good accuracy.
5. For the feeding system structure, use flexible pressing claws can adjust pressing pressure, to ensure the workpiece surface is not crushed, and also can meet the strong feeding requirements, to achieve high-speed feeding and planning.
6. Feeding use stepless variable speed, ensure planning quality for different kinds of wood.
7. Upper planning system adapts up & bottom driven roll, ensure enough strength for feeding.
8. Lifting system with digital display, make operation easy and convenient.
9. The machine adopts centralized lubrication system, equipped with hand-held pump, lubricate for sliding guide rails, slide plates and other lubrication point, easy to operate, more hummization.
10. Main electrical components, transmission parts are imported components of international brands, performance is stable, good reliability. Related Products
Related Products Video

6 Side Drilling Machine	https://youtu.be/2g2HAsqbqbA
Spray Paint Machine	https://youtu.be/WbXm3DA_DhY
Finger Joint Line	https://youtu.be/HP88DmDaN3s
4 Sides Moulder	https://youtu.be/nT71v6r39Oc
Double Side Planer	https://youtu.be/OiKPtJMWm34
Planing & Sawing	https://youtu.be/gi5khD9DxJY
Edge Banding Machine	https://youtu.be/ksOS_KaqGqE
CNC Beam Panel Saw	https://youtu.be/9EfIEZxdpDw
Rip Saw	https://youtu.be/UeTHmXaB1yc

Company Profile
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer feedbacks
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.Our CE Certifications
10.Our Packaging & Shipping
FAQ
1. Do you offer installation?Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.3. How long can we get replacement parts?Common spare parts can be delivered by express within one week. Some parts can be purchased locally.4. What technical support do you offer?1. Technical support by phone, email or WhatsApp/Skype around the clock.2. Friendly English version manual and operation video.3. Engineer available to service machinery overseas.5. Do you have any machines in our country?Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA, Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.6. Can you customized the machine?Our machines can be customized made according to buyers' request.7. What other machine do you offer?We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.8. Can you set the system to our language?Our system supports common languages like Chinese, English, Russian, Spanish, French, Germany
