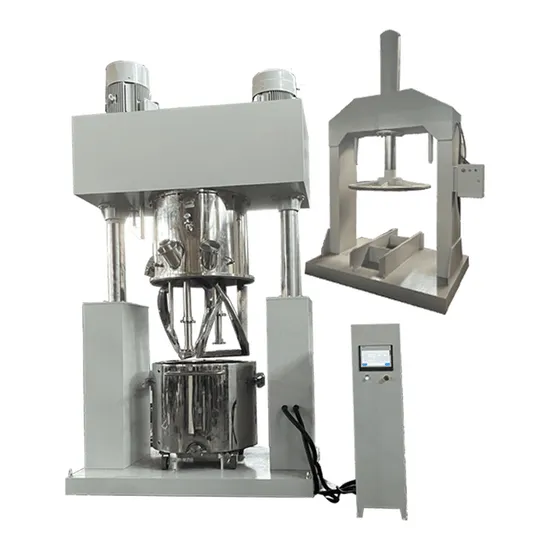

High-Viscosity Building Material Silicone Adhesive Mixer / RTV Liquid Sealant Mixing Machine

Product Description

Detailed Photos Product Description 1)Base material dispersing mixer/Vacuum kneader,
2)High viscosity pump
3)Base storage tank,
4)heating system(according to actual requirements)
5)Vacuum system,
6)Three roller grinding machine(according to actual requirements)
7)multifunctional-dispersing machine
8)Hydraulic discharging machine,
9)Cooling system,
10)Sealant filling machine( plastic bottle filling machine,film filling machine)
11)Raw material storage tank
12)Oven,
13)Batching system,

Production process
1)Pulp part
The solvent through the liquid metering device is added to the liquid material groove , by Vacuum suction to emulsifying kettle , start low speed anchor mixer , the powder material is sucked into the vacuum emulsifying tank for continuous stirred 10 minutes , then turn on the two sets of vertical high shear emulsifying 10 minutes , finally use horizontal emulsion machine , continuous cycle 30 minutes , finished slurry . A high shear inside the tank and an emulsion pump outside the tank are also used ,Ensure further refinement of materials , and greatly shorten the operation time
2)Paint part
By vacuum , resin , film-forming agent from the liquid tank into the low-speed stirred tank the bag filter is sucked into the low-speed mixer , the emulsion or solvent ,additives , slurry mixing , then adding additives ( thickener ) , blending paint .
3 ) Filter packing
After a good tune paint , vacuum defoaming after 5 minutes , stirring was stopped by a bag coating to semi-automatic filling machine for packaging , When the coating material using a two bag filters , can be switched with each use , does not affect the filling speed

model	feeding voluma	planetary motor	high-speed motor	Revolution speed	Rotation speed	High speed dispersion speed
DLH-6L	3.6	1.5	1.5	27	43	0~1000
DLH-20L	12	3	3	27	43	0~1000
DLH-60L	36	4	4	27	43	0~1000
DLH-100L	60	7.5	5.5	27	43	0~1000
DLH-200L	120	15	11	27	43	0~1000
DLH-350L	210	18.5	18.5	27	43	0~1000
DLH-600L	360	22	22	27	43	0~1000
DLH-1000L	600	37	30	23	43	0~1000
DLH-1500L	900	45	45	23	43	0~1000
DLH-2000L	1200	55	45	23	43	0~1000

about us
Certifications

FAQ Q : Can you send the formula for the products we want to make ?
A : Our machines can be used for many kinds of product making ,such as Resin , Paint, Adhesive , Cosmetic , Food , Chemicals . There are many kinds of these products , so it's impossible for us to know all the formulas and technologies . We can assist you to find the raw material list you need , and after you place order with us , we can help you to find formula and technology , there will engineers to teach you how to make the product , and the cost will be on your account.
Q : Do you have machines in stock ?
A : Yes , but just the small-scale machines Machines are different with other products , most of the large-scale machines are designed according to our customers 'requirements different customers have different production requirements , so the technical parameter is different for most machines On the other hands , most of the our machines will cover a large area , so once the machines are finished , we will effect shipment after QC .
Q : Can you send the detailed drawings of the machine to us before we place order ?
A : We can send you a draft drawing of the machines , and after you place order and pay the deposit , our engineer will design the send you the detailed drawings . Once you confirm without questions , we will put it into production.
