Industry Equipment Factory Direct Supply Precision Instrument Hbrv-187.5 Universal Hardness Testing Machine

Product Description

HBRV-187.5Brinell Rockwell & Vickers Hardness Tester Product Description HBRV-187.5 Brinell Rockwell & Vickers hardness tester is a multi-functional hardness tester with Brinell, Rockwell &Vickers three test modes and 7 level of test forces, which can test several kinds of hardness. Test force loading, dwell, unload adopts automatic system, widely used and easy to operate, therefore it is the popular machine for industrial enterprises and scientific research institutes.
Product Parameters Technical Specification:

Model	HBRV-187.5
Rockwell Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force	30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force	30kgf (294.2N), 100kgf (980.7N)
Indenter	Diamond Rockwell Indenter, Diamond Vickers Indenter, Φ1.588mm, Φ2.5mm, Φ5mmBall Indenter

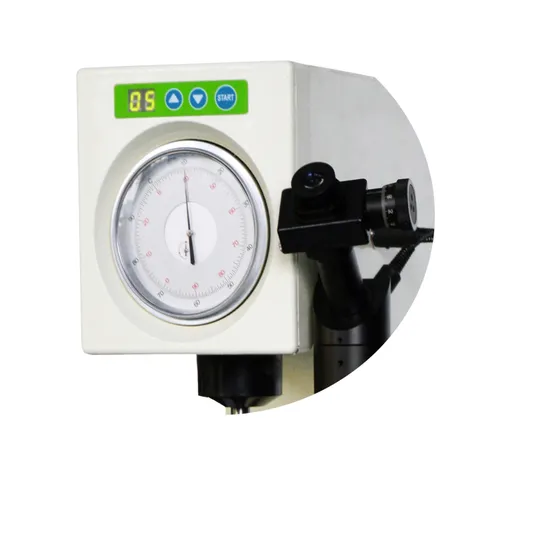

Hardness Reading	Rockwell: Dial, Brinell & Vickers: Check Hardness Table
Magnification	Brinell: 37.5×, Vickers: 75×
Min. Measuring Unit	Brinell: 4μm, Vickers: 2μm
Hardness Resolution	Rockwell: 0.5HR, Brinell & Vickers: Check Hardness Table
Dwell Time	2~60s
Max. Sample Height	Rockwell: 185mm, Brinell: 100mm, Vickers: 115mm
Throat Depth	165mm
Power Supply	AC220V,50Hz
Execute Standard	ISO 6508,ASTM E18,JIS Z2245,GB/T 230.2 ISO 6506,ASTM E10,JIS Z2243,GB/T 231.2 ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension	520×240×700mm, Packing Dimension: 650×370×950mm
Weight	Net Weight: 80kg,Gross Weight: 105kg

Packing List:

Name	Qty	Name	Qty
Instrument Main Body	1 set	Diamond Rockwell Indenter	1 pc
Diamond Vickers Indenter	1 pc	Φ1.588mm,Φ2.5mm,Φ5mm Ball Indenter	each 1 pc
Slipped Test Table	1 pc	Φ150mm Flat Anvil	1 pc
Φ74mm Flat Anvil	1 pc	Φ40mm V-shaped Anvil	1 pc
15× Digital Measuring Eyepiece	1 pc	2.5×, 5× Objective	each 1 pc
Hardness Block 60~70 HRC	1 pc	Hardness Block 20~30 HRC	1 pc
Hardness Block 80~100 HRBW	1 pc	Hardness Block 700~800 HV30	1 pc
Hardness Block 150~250 HBW 2.5/187.5	1 pc	Weights 0, 1, 2, 3, 4	5 pcs
Microscope System (include the inside light)	1 set	Outside Light	1 pc
Power Cable	1 pc	Fuse 2A	2 pcs
Level	1 pc	Horizontal Regulating Screw	4 pcs
Screw Driver	1 pc	Spanner	1 pc
Anti-dust Cover	1 pc	Usage Instruction Manual	1 copy

Application range:
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Packaging & Shipping The hardness tester is relatively heavy and comes in a special export wooden box. In order to prevent bumps during transportation, the inside of the product will be fixed with straps and screws. If you order this product in small quantities, express transportation and air transportation are the main options. For large quantities of goods, sea transportation is more suitable. The specific transportation method can be communicated with us.
Company Profile Chongqing Scope is mainly engaged in the export of laboratory equipment. Our annual export volume reaches hundreds of orders. The types of products include microscopes, laboratory consumables, medical simulators, metallographic equipment and hardness testers, etc. They are all produced by powerful domestic factories and have all relevant certificates and qualifications.
The factory that produces hardness testers integrates product development, production and testing. Through the research of domestic experts, the production of imported processing equipment, and the production of professional laboratory testing, our hardness tester and metallographic equipment are produced. The product has many patents and various qualification certificates. These testing machines produced by the factory are packaged and sold after passing various tests. Our hardness tester products are cost-effective, stable in performance and complete in function.
