LoRaWAN / Nb-IoT / 4G / WiFi Micro Concentrator Can Connect to RS485/Bluetooth Terminals

Product Description

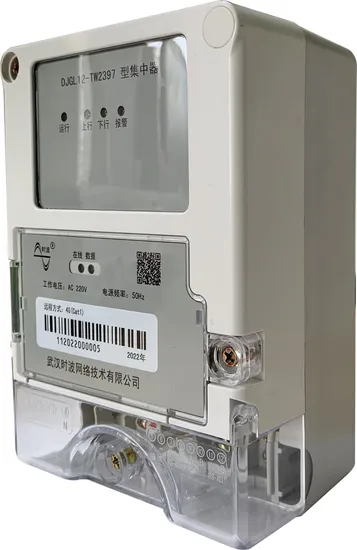

The DJGL32-TW2397 type concentrator (Rail-mounted) (hereinafter referred to as the 'concentrator') is a new type of miniature concentrator developed by our company. It is designed for connecting RS485/Bluetooth terminals and is installed on a rail. It operates on AC 220V power supply. It is a new generation micro concentrator that integrates LoRaWAN/NB-IoT/ Cat.1(4G)/WiFi/WLAN/RS485/Bluetooth and other IoT communications. It has the function of automatically maintaining network connections, ensuring the stability and reliability of the meter reading network, and achieving the goals of quick construction, no debugging, and maintenance-free operation. Functions and Features
1. It enables centralized meter reading by automatically collecting communication terminal data through RS485 and Bluetooth at scheduled intervals.
2. It supports active uploading and bidirectional transparent transmission. Using LoRaWAN/NB-IoT/Cat.1(4G)/WiFi/WLAN (choose one) wireless module, it proactively uploads data to the corresponding platform at a default interval of 4 hours (adjustable), and receives commands from the platform for terminal operation and control.
3. It adapts to various communication protocols by pre-setting command frames for reading terminal data information.
4. It can set up to 128 command frames for reading terminal data information, with a maximum capacity of managing 128 terminals.
5. It supports on-site RS485/Bluetooth and platform remote maintenance functions.
Technical Parameters
Overall dimension


Smart Energy Meter Smart Water Meter Smart Gas Meter
