Custom Aluminum Injection Die Casting Mold Mould Manufacturer Auto Parts Maker

Product Description

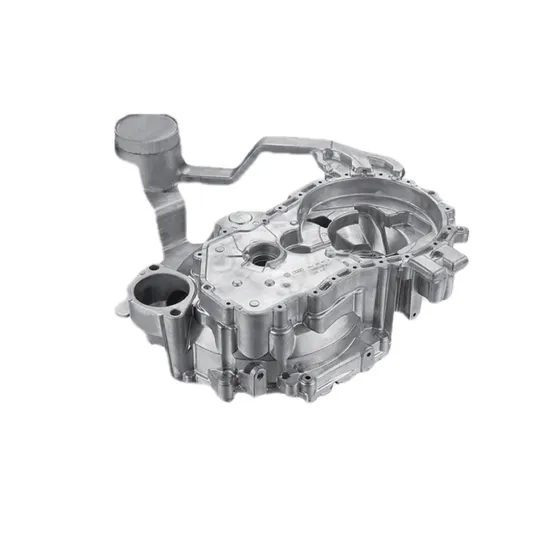

New Energy Vehicle Motor Housing
Product Description
Overview:
Basic Info.

Model NO.	TG-MOULD New Energy Vehicle Motor Housing
Material	Steel for Mold, Aluminum Alloy for die casting parts
Part Size	519 X 350 X 279mm
Mold Size	1500 X 1500 X1500mm
Surface Treatment	Heat Treatment
Using Hardness	>HRC45
Average Wall Thickness	4.5mm
Mould Life	>100,000 shots

Certification	ISO
Customized	OEM & ODM customizable
Condition	New
Design, Engineering, Production	CAD/CAE/CAM
Technical Point1	4slides with angled core-pulling
Technical Point2	Passive closing vacuum volve, Full process vacuum
Service	OEM & ODM customizable
Advantage	Real time monitoring, Pickup Robot matchable

Surface Treatment/Finish	Anodize, Chromate, Electrolytic Plating, Nickel P
Tolerance	as per Customer Requirement
Material Standard	ISO, DIN, ASTM, UNS, AISI, JIS, BS, NF
Price Terms	EXW/FOB/CFR/CIF Ningbo Port/Shanghai Port or Any Other Seaport/Airport
Business Type	Manufacturer, Exporter
Main Product	Automotive Parts
Tonnage of Die Casting Machine	2800Ton
Type	Aluminum Alloy Auto Parts

Mold Weight	20,000kg
Products Weight	14.35kg
Transport Package	Standard Exporting Wooden Case
Trademark	TG
Origin	Ningbo, China
HS Code	8480411000
Production Capacity	300-500set/Year

Packaging & Delivery

Package Size	170.00cm * 170.00cm * 170.00cm
Package Gross Weight	20,050kg

Dedicated to various sophisticated, precise & long lifetime die casting
mould/mold innovation and manufacturing.
Company Profile
Our Advantages
30+ years of experience. Company established in 2012 by a tight-knit working team with rich experience & strong reputation for excellence in high-pressure die-casting mold industry.
80+ company staff. The technical engineers account for 25% of the whole staff. Most of the employees stay from the beginning of the company.
14 Patents Awarded, The company commitments to innovation and continuous improvement.
10,000+ square meters of company area. It is only within 15km away from Ningbo Port by the East China Sea and 3hr driving to Shanghai Pudong airport with convenient transportation.
300- 500 sets of high-pressure die-casting molds of annual capacity for HPDC machines ranging from 50tons to 8000tons+ for Aluminum/Magnesium alloy parts.
Wide business range: Mold for parts of automotive, motorcycle, new energy, telecommunication, electronic, and other fields which have strict requirements on appearance, dimension, porosity, and mold life. Being good at transform client concepts into precision die-casting molds optimized for production efficiency and longevity.
Dozens of in-house state-of-the-art equipment ensure precise production: Precise CNC machine center, 5-axis CNC milling machine, Large horizontal machining center, Gantry CNC machining center, EDM/WEDM, Large WEDM-LS, Engraving machine, Grinder, Drilling machine, Die spotting machine, 3D scanner, CMM three coordinate measuring instrument, etc.
ISO9001 Quality Management System registered.
Esteemed Direct/Indirect Customers: BMW, Audi, GM, Mercedes-Benz, Volvo, Ford, Schaeffler, VW, FAW-VW, Toyota, Honda, Nissan, BAIC, SAIC, ZF, Hella, Magna, Dymos, Tesla, BYD, Chery, Geely, Changan, Dongan, NIO, Leapmotor, Xiaomi, Huawei, Zongshen, Nokia, Ericsson, LG, AISIN, BorgWarne, etc.
CAD/CAE/CAM for design, engineering and production.
Moldflow Software for mold flow analysis.

===========================================================================================================================

Work Flow
Factory Workshop
Our Equipment

Esteemed Customer

Certifications

FAQ

Q:How about your annual production capacity quantity?
A:
Our annually production capacity quantity is over 400+ mold delivery
Q:
What is the max. clamping force mold for die casting machine so far?
A:
So far we can produce max. 7000T(70,000KN) clamping force die mold
Q:
Are you a direct manufacturing factory, not a trading company?
A:
Yes, we are direct die casting mold factory, not a intermediate trader
Q: Do you have some experience exporting to other nations?

A: Yes, we have exported to Europe, Asia and America, Middle East exporting cases
Q:
What about the normally production delivery time and lead time?

A: normally it depends on your mold design and tonnage, dimension, normally the time is 30-40 days
Q:
What about the payment?

A: T/T, LC all what you can accept

Q: Do you have a MOQ?

A: 1set
Q:
OEM is available and acceptable?
A:
Yes, we can use your logo
