Plastic PP Woven Sack Bag Making Machine Plane Cam Four Shuttle Circular Loom

Product Description

Brand : Nanyi
Adopt the latest energy saving synchronous motor and the intelligent micro-computer controling system can be installed if
required.It can adjsut the weft density and compensate the weft density in case of weft-braking , which can improve the evenness
of woven fabrics.
Brand : Nanyi
With the scroll transmission by little cam and swing-arm wheel, the machine runs easily and stably, non-lubrication.
Brand : Nanyi
With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.
PP Plastic Woven Bag Making Machine Four Shuttle Circular Loom:

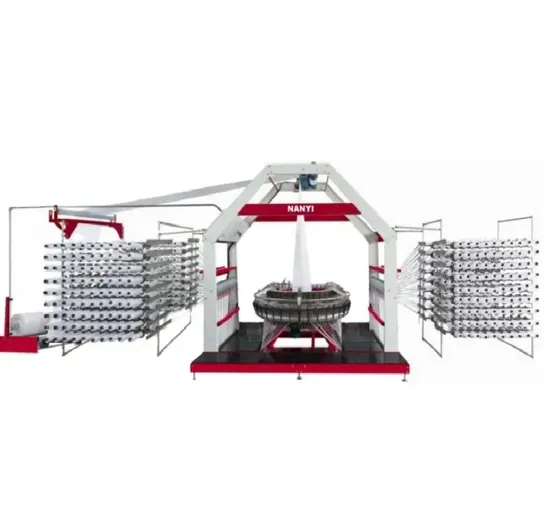

Four Shuttle Circular Loom > NY-YZJ-750/4
This series circular loom is used for weaving PP/PE flat yarn to be woven fabric in roll, it can weave different quality flat yarn even complete recycled material. Reasonable design, proper structure, easy operation, convenient maintenance, low power consumption and high efficiency etc.
★ Sensitive automatic stop with the intelligent detector for warp-breaking,weft-breaking and weft-ending;
★ Rimless wheel shuttle style, less friction, more steady running;
★ New weft automatic feeding system, reducing waster;
★ Adopts the latest energy saving synchronous motors to control the winder,main frame and fabric lifting roller to be synchronized, when the loom stops,the winder stops at the same time with no harm of rubber sheet of winder roller and the fabric, also avoid less density of fabric which is usually caused by restarting the loom after stop;
★ Adopts the latest energy saving synchronous motors to adjust the weft density and comcensate the weft density in case of weft-breaking,that improve the evenness smooth of woven fabric

Model No.	NY-YZJ-750/4
Shuttle Quantity	4
Folded Cloth Width	300-750
Max Number Warp	768pcs
Max Diameter of Warp Bobbin	110mm
Max Diameter of Weft Bobbin	110mm
Max Revolution	180rpm
Bobin Size (ID*L)	Φ38*230mm/Φ35*218mm
Power of Main Motor	2.2
Power of lift-up Motor (kw)	0.37
Warp infeed Motor	0.15kw*2
Winder Motor	1.6 Nm
Max Winding Diameter	1200mm
Installing dimensions(L*W*H) m	8.5*2.2*3.3
Approxi.Weight(kg)	1600

Company Display
Application
FAQ & contact us
1. Are you trading company or manufacturer? A: We are manufacturer.
2. What certificate do you have?
A: We have ISO9001, SGS, CE certificate.
3. What's the main market of your company?
A: we have customers all over the world.
4. What can you buy from us?
A: Plastic Tape Extrusion Line,Circular Loom,Automatic Cutting and Sewing Machine,Laminating Machine,Printing Machine.
5. How long is your machine's warranty period?
A: All our machine have one year guarantee.
6. How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
7. What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
8. Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
9. How do we solve the machine problem after your engineer leaving?
A: Generally speaking, there will be no problem after finished installation, if any problems, you can contact our sales at any
time. Our engineer will take the solution video according to your description.
10. Where is your factory located? How can we visit there?
A: Our factory located in Chuiyang Industrial Zone, Aojiang town, Wenzhou City, Zhejiang, China
You can by air to Wenzhou Airport and by High-speed rain to pingyang Station.
We are welcome all friends to visit us for future cooperation!
