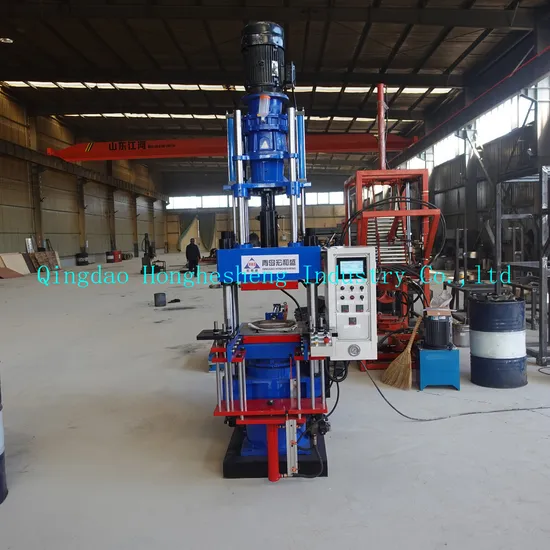

Vertical Injection Molding Machine, Rubber Vulcanizer Machine, Rubber Vulcanizing Press Machine

Product Description

we provide as below:
1. Rubber flat vulcanization molding machine
2. Rubber vacuum vulcanization molding machine
3. Rubber injection vulcanization molding machine
4. Rubber injection vulcanization machine
advantage
1.Adopt the world advanced SOLIDEWORK3D software and finite element analysis of mechanical design, the optimum design is integrally molded high rigidity, precise structure, long service life.
2.Heating plate used for deep hole processing, and after carburizing, nitriding completed after grinding,using the principle of heat, the high accuracy, the optimal design with average temperature,HRC50-55 hardness, wear a long time, Not easy to be out of shape and it has high plane precision.
3.Using the technology of planar pressure correction, the maximum pressure(200KG)nut leveling device,the highest plane precision can reach 0.05MM
4.Unique oil circuit design, the oil circuit non impact and low noise in operation, increase the effectiveness, reduce the energy consumption.
5.Using circulation radiation cooling device, to ensure good heat exchange, low oil temperature,long life hydraulic parts, stability forming

model/	XLB-D0.25MN	XLB-D0.5MN	XLB-D0.8MN	XLB-D1.0MN	XLB-D1.0MN
Mold closing force	0.25	0.5	0.8	1.0	1.0
Heating plate size	300*300 350*350	400*400 450*450 500*500	500*500 600*600	450*450	550*550
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	152	200	250	285	300
Unit area pressure of heating plate (kg/cm2)	27.7 20.4	31.2 24.6	32 22.2	49.3	33
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen
Gross weight	900	1200/1350/1450	1550/1750	2200	2300

model	XLB-D1.0MN	XLB-D1.2 MN	XLB-D1.6 MN	XLB-D2.0MN	XLB-D2.5MN
Mold closing force	1.0	1.2	1.6 MN	2.0	2.5
Heating plate size	600*600	700*700	750*750	800*800	1000*1000
Working layer	1 / 2	1/ 2	1 / 2	1 / 2	1 / 2
Plate clearance	200	200	200	200	200
Plunger stroke	200/400	200/400	200/400	200 /400	200 /400
Plunger diameter	300	320	360	400	450
Unit area pressure of heating plate (kg/cm2)	27.7	24.5	25	31.25	25
Heating	Electrical	Electrical	Electrical	Electrical	Electrical
Heating temperature	300	300	300	300	300
Control	automatic	automatic	automatic	automatic	automatic
Optional control way	Semi-automatic/ common automatic /PLC text type/ PLC+ touching screen

our factory
Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services. The company's main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised. "Quality, integrity, innovation, service"is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.
