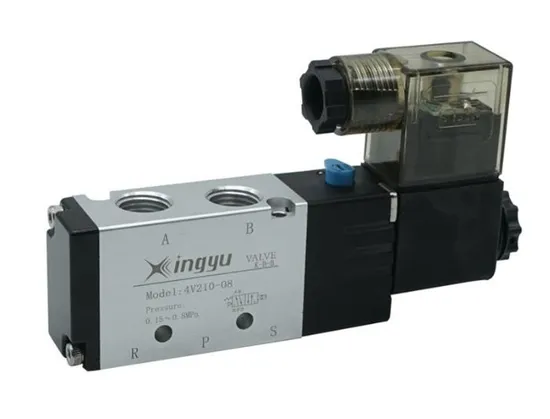

5 Way 2 Position 4V210-08 DC24V/12V AC220V Single Type G1/4 Thread Low Power Consumption Pilot Small Size Large Flow Solenoid Directional Pnematic Valve

Product Description

5/2 Way 4V210-08 DC24V/12V Single Type G1/4'' Thread Solenoid Pnematic Valve
Lower Power consumption,
good apperance,exhaust for the pilot and main valve,
small size,large flow,good apperance,flexible,
can be integrated installation,high wear resistance and long life.
Ordering code
Specification

Model	4V210-06	4V220-06	4V230C-06	4V230E-06	4V230P-06	4V210-08	4V220-08	4V230C-08	4V230E-08	4V230P-08
	4A210-06	4A220-06	4A230C-06	4A230E-06	4A230P-06	4A210-08	4A220-08	4V230C-08	4V230E-08	4V230P-08
Type	5/2		5/3			5/2		5/3
Flow rate	14mm²(Cv=0.78)		12mm²(Cv=0.67)			16mm²(Cv=0.89)		12mm²(Cv=0.67)
Connection	Inlet=Outlet=Exhaust=G1/8''					Inlet=Outlet=G1/4'' Exhaust=G1/8''
Media	Clean Air
Working type	Pilot
Working pressure	0.15~0.8Mpa
Max.pressure	1.2Mpa
Ambient Temp.	-5~50ºC
Voltage Tolerance	±10%
Power	AC:4.5VA DC:3W
Insulation class/Protection Class	F Class IP65
Terminal	Flying Lead Or DIN43650B PIN
Frequency	5 Cycles/s
Response time	0.05S

Drawing
Related Products
Company information

Xingyu Electron(Ningbo)Co.,Ltd. is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing, marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.
Brief Introduction:
--Approx 30 years' experience in manufacturing solenoid coils;
--Started to make solenoid valves & pneumatic actuators since 2004;
--ISO 9001 and IATF16949 certificated company;
--Main products: pneumatic actuator, Angle seat valves, Solenoid valves, solenoid coils,
Digital pressure switch, Vacuum generator, E/P regulator;
--Application: Pneumatic & Hydraulic industries, fluid control system,
air and water treatment system, Automatic industry, etc;
