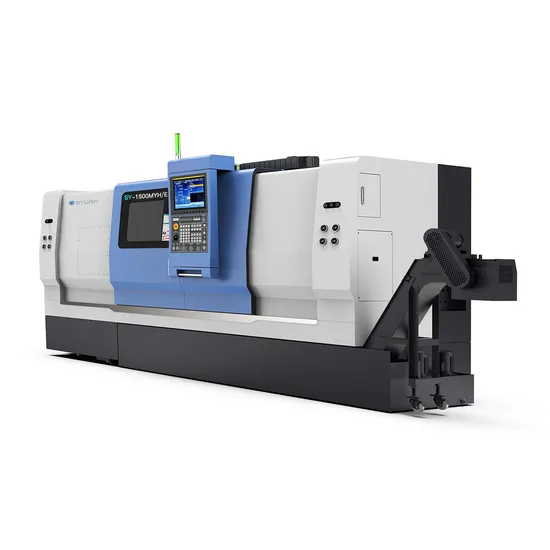

OEM/ODM High Precision CNC Turning Center Lathe with CE

Product Description

Product Description
The machine features an optimized 30-degree inclined bed structure, ensuring unparalleled precision, superior rigidity, and exceptional cutting stability. Crafted from high-strength HT300 cast iron, the one-piece robust structure bed is enhanced by finite element analysis to deliver outstanding mechanical rigidity and stability. This guarantees long-term reliable precision, improved processing stability, and extended tool life. Additionally, stress relief treatments further enhance precision stability. The high-strength hard rail structure and screw pre-tensioning design in the transmission system significantly boost rigidity performance. Main features of this machine tool: 1. The spindle unit boasts an independent sleeve type design, undergoing rigorous dynamic balance tests to ensure high precision, excellent precision retention, minimal thermal deformation, and superb thermal stability. With a maximum speed of 2500rpm and a nose deflection accuracy within 0.003MM, the spindle's front end features a large-diameter, high-precision double-row roller bearing with a combined oblique contact ball bearing structure. This optimal span two-point balanced support design handles both radial and axial loads efficiently, allowing for high-speed precision cutting or low-speed heavy cutting. Ideally suited for mass production of intricate, high-precision, and high-finish products. 2. The high-rigidity servo power turret enhances rapid and precise tool change performance. Coupled with high-speed power shaft milling, it offers exceptional turning and milling capabilities. The tool holder is equipped with a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor. 3. The machine tool features robust hard rail guide rails and precision-ground ball screws, heat-treated for optimal performance. These components ensure superior precision and durability. Each axis utilizes a direct transfer structure and a double anchor pre-relay method, effectively minimizing thermal displacement and significantly enhancing machining accuracy. Excellent precision and durability, each axis adopts direct transfer axis structure and double anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. 4. This machine is equipped with a comprehensive hydraulic and lubrication system, featuring high-quality hydraulic pumps, valves, and components that drastically reduce failure rates. The design is simple and reliable, offering centralized quantitative automatic lubrication for user convenience. 5. The hydraulic tailstock, characterized by a high-rigidity integral structure, eliminates vibrations and provides outstanding stability. The sleeve's expansion and contraction are hydraulically controlled, ensuring convenience, speed, and reliability. 6. Featuring a Taiwan rotary chuck oil cylinder and an automatic chip removal device, this machine significantly reduces operator labor intensity, ensuring safe and efficient production. All functional components are programmable for optimal performance and user-specific customization.
Product Parameters

Name	Unit	SY1500MH/E
Max. swing diameter over bed	mm	Φ640
Max. processing diameter	mm	Φ460
Max. swing diameter over cross slide	mm	Ф350
Max. processing length	mm	1500
Spindle nose	/	A2-8
Spindle bore diameter	mm	Ф87
Bar diameter	mm	Ф75
Max. spindle speed	rpm	2500
Spindle motor power	kw	26KW
Motor torque pulley ratio; 1:1.5	Nm	372/529
X/Z travel	mm	300/1550
X/Z Specification of shaft guide		Box way
X/Z Shaft motor torque	Nm	18.6
X/Z motor power	KW	2.9/2.9
X/Z axis moving fast	m/min	20/20
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Power turret	/	BMT65-12/ER32
Power turret motor	Kw	5.0/7.5
Max. speed of power tool holder	rpm	5000
The specification of outer diameter tool holder	mm	25x25
The specification of inner diameter tool holder	mm	Ф50
The adjacent tool change time	sec	0.38
Programmable hydraulic tail seat		Hydraulic
The biggest stroke of the tail	mm	1530
Morse Slideway	type	Mosh5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	m	4850*2300*2100
Machine Weight	kg	7500
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model, or send us your product drawings. We will ensure to choose the most suitable machines for your needs.
Q2: What are the main products of your company?
We specialize in a wide range of machinery, including CNC Lathe Machine, CNC Milling Machine, CNC Turning Machine, Vertical Machining Center, Horizontal Machining Center, Lathe Machines, and composite processing equipment for both turning and milling.
Q3: Where is your factory located? How can I visit there?
Our factories are located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us at any of these locations.
Q4: How do you handle transportation?
We provide comprehensive transportation solutions, including DDP, CIF, FOB, and FCA options.
Q5: What are your Payment Terms?
We accept T/T with a 30% initial payment when ordering, and the remaining 70% balance payment before shipment.
Q6: What is the Minimum Order Quantity (MOQ)?
A: Our MOQ is 1 set. Note that only some low-cost machines may require more than 1 set.
We want to know:
1. We strongly suggest providing the size and material of your workpiece for our evaluation. If possible, send us the workpiece drawing so that we can recommend the most suitable model for you.
2. If you need a CIF Price, please kindly inform us of the port of destination.
