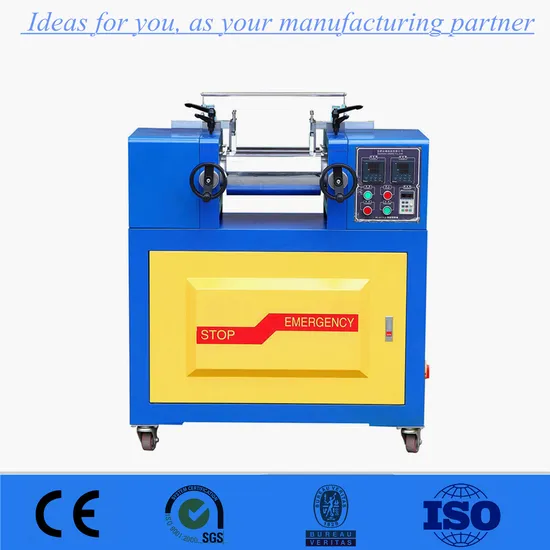

Two Roll Mill for Rubber with Lab Use
| US$6,500.00-8,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HY3870
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Dimension(L*W*H)
1000*430*1150
Year
2020
Warranty
1 Year
After-Sales Service Provided
Video Technical Support, Online Support
Applicable Industries
Manufacturing Plant
Capacity
1~3kg
Roll Size
150*320mm or Customized
Roll Material
High Hardness SKD Chromium Molybdenum Alloy
Temperature Range
Rt-300ºC
Temperature Deviation
±3ºC
Heating Time
R.T to 200ºC in 25min
Heating Mode
Electric
Nip Gap
0.05~8mm Adjustable
Power(W)
8kw
Transport Package
Standard Export Wooden Case
Specification
220V 50Hz
Trademark
Evertech
Origin
Qingdao, China
HS Code
84778000
Production Capacity
10 Set/Sets Per Month
Product Description
Product DescriptionHY3870 Series Two Roll Mill is used to mix, scatter and plasticize materials for color matching, quality control and research. It is suitable for masterbatch, PVC, plastic, pigment dispersion on plastics, etc.
Features
★ Two heating modes optional: electric heating or oil heating, with or without water cooling. ★ Hard chrome plated rolls with mirror polished surface, anti-corrosive, high temperature resistant, fast thermal conduction.
★ The roll size can be customized according to requirement.
★ It adopts precision screw rod to adjust roll gap, digital display, 0.1~8mm adjustable.
★ The speed of two rolls can be fixed with a constant friction ratio, or be adjustable with a constant friction ratio, or be adjustable with variable friction ratio.
With multiple emergency stop device, more safe.
1. Emergency stop pull rod on the top of machine. Pull the rod, the two rolls will stop immediately. 2. Reversal stop switch on the front door. Kick the switch with knee, the two rolls will rotate reversely and stop after a few seconds. This time can be set by the user. 3. Available with safety hood to prevent the operator hands stretch into the two rolls (optional). 4. Pneumatic emergency stop function to separate rolls to avoid secondary damage
Specification
| Model | HY3870A | HY3870B | HY3870C | HY3870D |
| Capacity | 1~3kg | |||
| Roll size | Ø150×320mm or customized | |||
| Roll material | High hardness SKD chromium molybdenum alloy Roll surface: HRC 60 mirror chrome plated | |||
| Temperature range | RT-300ºC | R.T | RT-300ºC | |
| Temperature deviation | ±3ºC | / | ±3ºC | |
| Heating time | R.T to 200ºC in 25min | / | R.T~ 200ºC in 25min | |
| Heating mode | Electric | Oil | / | Electric |
| Cooling mode | / | / | Water | |
| Nip gap | 0.05~8mm adjustable | |||
| Speed of front roll | 24rpm or 0~35RPM adjustable or customized | |||
| Friction ratio | 1:1.27 or customized | |||
| Roll temperature control | independent adjustment of two rolls | |||
| Power | 8KW | |||
| Power supply | 3phase AC380V 50Hz, 22A | |||
| Dimensions (mm) | 1000×430×1150 | |||
| Weight (kg) | 410 | |||
| Packaging | |
| Size(mm) | 6220 (L) * 760 (W) * 1950(D) |
| Weight | 1800Kg |
| Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. |
Contacting us
| Victor Wang | |
| Website | evertech.en.made-in-china.com |
| Mobile Phone | +86 15269210610 |
| +86 15269210610 | |
| evertechvictor | |
| +86 15269210610 | |
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment |
| FOB | |||
| CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||
| CIF | |||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||
| West Union | Amount lower than 5000usd | ||
| West Union | |||
| Delivery Time | 7~10days after receiving payment for one container | ||
